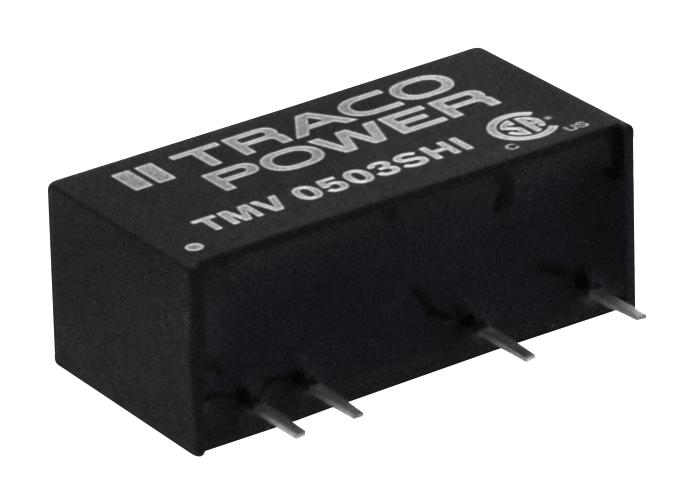

TRACO POWER TMV0509SHI DC/DC Converter
The TMV-HI series offers compact 1 Watt non-regulated DC/DC converters with high I/O isolation up to 5,200 VDC, ideal for IGBT applications. They feature a SIP-7 package, operate between -40°C and +95°C, and provide multiple output voltages with efficiencies up to 79%. These reliable converters include short circuit protection, high surge voltage tolerance, and meet safety standards such as UL and IEC. Designed for industry use, they ensure stability with low ripple and noise, making them suitable for demanding industrial and automation systems, with a typical MTBF exceeding 2 million hours.
TRACO POWER TMV0509SHI DC/DC Converter Specifications:
- Power: 1 Watt
- Input Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V (various models)
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V (various models)
- Output Current: up to 303 mA
- Isolation Voltage: 5200 VDC
- Operating Temperature: -40°C to +95°C
- Surge Voltage: 5V models: 9V max, 12V models: 18V max, 15V models: 20V max, 24V models: 30V max
- Efficiency: up to 79%
- Ripple & Noise: 100 mVp-p max
- Switching Frequency: 100 kHz
- Temperature Coefficient: +0.01%/K
- Input Current No load: 12-17 mA depending on voltage
- Dimensions: Slim SIP-7 package, weight 2.4g
- Certifications: UL, IEC, RoHS, Reach
Buy the Buy TRACOPOWER TMV-HI Series 1 Watt Part Number TMV0509SHI Online
Purchase the TRACOPOWER TMV-HI series 1 Watt DC/DC converters online to benefit from high I/O isolation, excellent efficiency, and robust safety features. Perfect for industrial and automation applications, these compact converters operate reliably across a wide temperature range from -40°C to +95°C. With certifications including UL and IEC, they offer dependable performance with low ripple, noise, and high surge voltage tolerance. Ensure your project’s power needs are met with a compact, reliable solution available for quick online ordering.
Order your TRACOPOWER TMV-HI series 1 Watt TMV0509SHI today and ensure reliable, high-isolation power conversion tailored for industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMV0509SHI?
You can click on the BUY or RFQ button to purchase TMV0509SHI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMV0509SHI?
You can download the TMV0509SHI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMV0509SHI?
TRACO POWER
