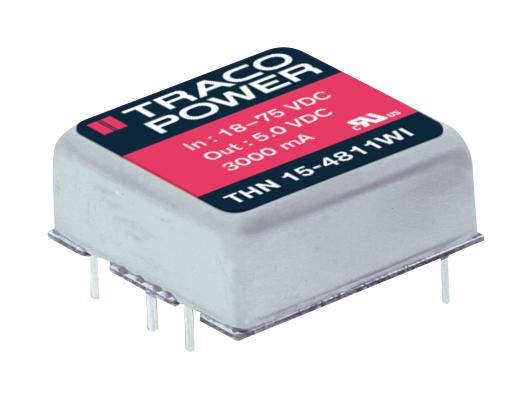

TRACO POWER THN152413WI DC/DC Converter
The THN 15WI series consists of highly efficient 15-watt DC/DC converters with ultra-wide 4:1 input ranges of 9-36 VDC or 18-75 VDC. Encased in a compact, shielded metallic housing measuring 25.4 mm x 25.4 mm x 10.2 mm, they feature adjustable output voltages, high efficiency up to 87%, and operational temperature from -40°C to +85°C. Suitable for space-constrained applications in industrial and communication systems, these converters comply with safety standards UL 60950-1 and RoHS, ensuring reliable performance and excellent isolation of 1600 VDC.
TRACO POWER THN152413WI DC/DC Converter Specifications:
- Power: 15 Watts
- Input Range: 9-36 VDC or 18-75 VDC with ultra-wide 4:1 ratio
- Output Voltage: 3.3V, 5V, 9-36V, 12V, 15V, +5V, +12V, +15V options
- Output Current: Up to 4A (varies by model)
- Efficiency: Up to 87%
- Operation Temperature: -40°C to +85°C
- Isolation Voltage: 1600 VDC
- Dimensions: 25.4 mm x 25.4 mm x 10.2 mm
- Encased in metal housing with grounded cover
- Weighted: 15g
- Certifications: UL 60950-1, RoHS compliant
- Ripple: Max. 100 mVpk-pk at 20 MHz bandwidth
- Transient Response: 250 ps
- Ambient Humidity: 5-95% RH
- Thermal Resistance: 18.2°C/W natural convection, 15.8°C/W with heatsink
- Shock & Vibration: MIL STD-810E
- MTBF: Over 560,000 hours
- Input Protection: Overvoltage and short-circuit protection
- Standby Power Consumption: 2.5 mA at no load
Buy the Buy TracoPower DC/DC Module Part Number THN152413WI Online
Order the TracoPower THN 15WI series DC/DC converter online today to benefit from compact design, adjustable output, high efficiency up to 87%, and wide input range. Ideal for industrial, communication, and battery-powered systems where space is limited. With robust safety standards including UL 60950-1 and RoHS compliance, it offers excellent isolation of 1600 VDC, operating reliably from -40°C to +85°C. Purchase now for proven quality, reliable performance, and fast delivery, ensuring your projects stay on schedule.
Buy TracoPower THN152413WI high-efficiency DC/DC converter now and ensure reliable power supply for space-constrained industrial and communication devices.
Frequently Asked Questions
Where can I buy TRACO POWER THN152413WI?
You can click on the BUY or RFQ button to purchase THN152413WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN152413WI?
You can download the THN152413WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN152413WI?
TRACO POWER
