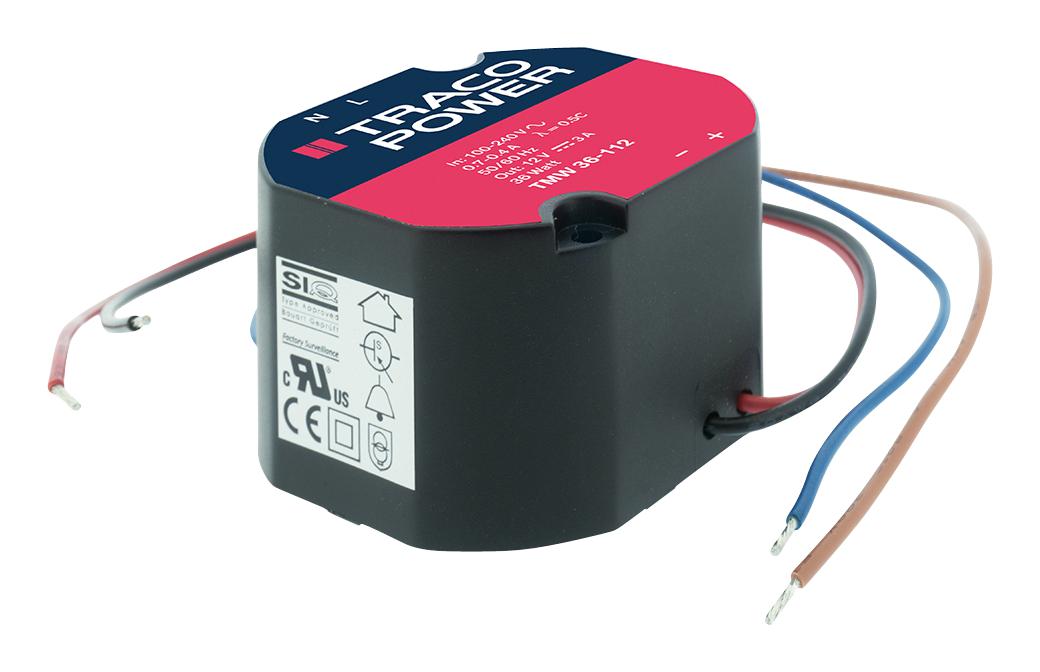

TRACO POWER TMW36124 Medical Power Supply
The TMW 36 series comprises fully encapsulated AC/DC power supplies designed for medical, household, and industrial applications. These compact, dust-resistant, and waterproof units are rated IP68 and conform to IEC/EN 62368-1, IEC/EN 60335-1, and IEC/EN 60601-1 3rd edition standards. They are certified for 2xMOPP and feature reinforced isolation, making them suitable for protection class II applications. The power supplies can be mounted in wall outlet boxes with flying leads or screw-mounted on wood and furniture. They operate within a temperature range of -20°C to +80°C and include safety features such as leakage current regulation, reinforced I/O isolation, short-circuit, overvoltage, and overtemperature protections, with a 5-year warranty offered.
TRACO POWER TMW36124 Medical Power Supply Specifications:
- Input Voltage: 85 - 264 VAC, 47-63 Hz
- Power Consumption (No load): 200 mW max.
- Output Power: 36W
- Output Voltage: 12 VDC (3A), 24 VDC (1.5A)
- Efficiency: 87%
- Operating Temperature Range: -20°C to +80°C
- Isolation Test Voltage: 4000 VAC (input to output, 60 s)
- Leakage Current: < 100 pA (body-floating applications)
- Reinforced insulation, 2xMOPP certified
- Dimensions: 200.0 ±20.0 mm length, 5.0 ±2.0 mm width
- Weight: 72V model 139g, 24V model 166g
- Protections: Short-circuit, overvoltage, overtemperature
- Ingress Protection: IP68
- Compliance: IEC/EN 62368-1, IEC/EN 60335-1, IEC/EN 60601-1
Buy the Traco Power TMW 36 – Reliable Medical and Industrial Power Supply for Industrial Applications
Discover the Traco Power TMW 36 series, fully waterproof and certified for medical and industrial use. These compact, IP68-rated power supplies feature reinforced insulation, wide temperature operation from -20°C to +80°C, and multiple safety protections including short-circuit, overvoltage, and overtemperature. They come with a 5-year warranty and mounting options for wall outlets, ensuring seamless integration into demanding environments. Perfect for applications requiring reliable, safe, and durable power solutions, enabling smooth operation across various industries.
Buy Traco Power TMW 36 now and experience unmatched reliability and performance in demanding medical and industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMW36124?
You can click on the BUY or RFQ button to purchase TMW36124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMW36124?
You can download the TMW36124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMW36124?
TRACO POWER
