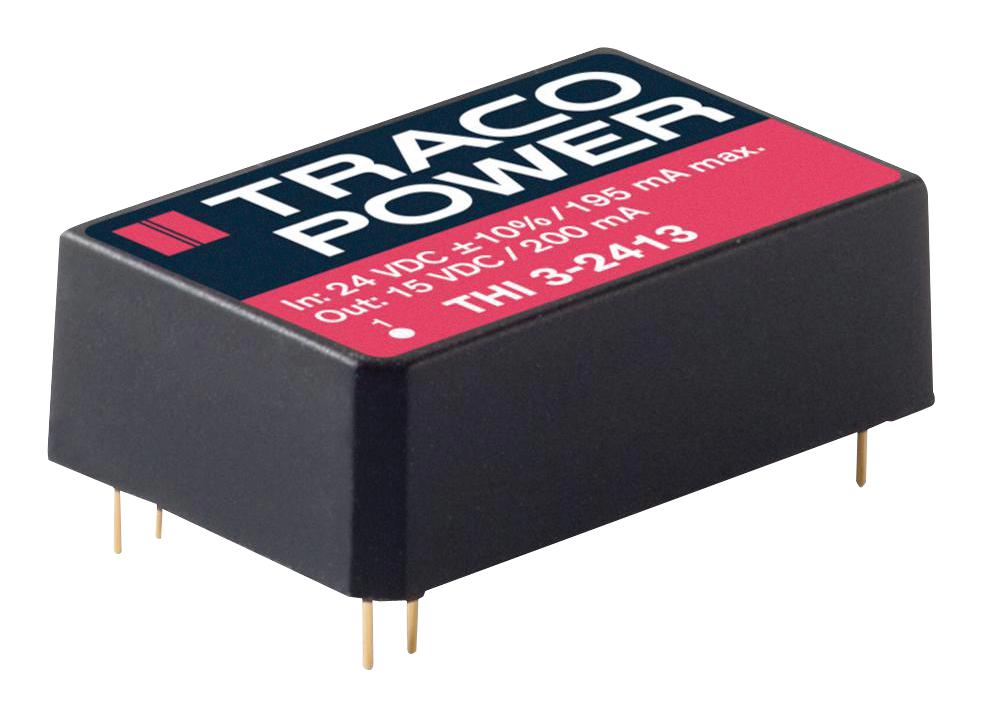

TRACO POWER THI32413 High Isolation DC/DC Converter
The THI 3 Series is a high-isolation DC/DC converter range designed for medical and industrial applications. Encapsulated in a DIP-24 package, these converters provide reinforced insulation and I/O isolation up to 4000 VACrms, rated for a 300 VACrms working voltage. They feature fully regulated output voltage, low leakage current, and short circuit protection, complying with IEC/EN 60601-1 and IEC/EN 60950-1 safety standards. Available in multiple models for inputs of 5, 12, and 24VDC with various outputs, they are suitable for medical instrumentation and industrial controls requiring certified insulation and safety compliance.
TRACO POWER THI32413 High Isolation DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC, 12 VDC, 24 VDC
- Output Voltage: 5.0 VDC, 12 VDC, 15 VDC, 24 VDC with ±10% tolerance
- Max Output Current: 600 mA to 250 mA depending on model
- Efficiency: 60% to 64%
- Isolation Voltage: 4000 VACrms, rated for 300 Vrms working
- Isolation Capacitance: 20 pF (Input/Output), 470 pF max (single output), 220 pF max (dual output)
- Conducted Noise: EN 55022, class A and FCC level A
- Ripple and Noise: 50 mVpk-pk max (20 MHz bandwidth)
- Operating Temperature: -40°C to +75°C, case temperature up to +95°C
- Protection: Short circuit, automatic recovery
- Safety Standards: IEC/EN 60950-1, IEC/EN 60601-1 3rd Edition, ANSI/AAMI ES60601-1
- Weight: 12.4 g
- Dimensions: Customizable according to standard DIP-24 package
- Soldering Temperature: Max 260°C for 10 sec
- Switching Frequency: 25-60 kHz
Buy the Buy Traco Power THI 3 Series Part Number THI32413 Online
Acquire the Traco Power THI 3 Series high isolation DC/DC converter online today for medical and industrial applications. Featuring reinforced insulation and certified safety standards for reliable performance. Suitable for medical instrumentation and control systems, these converters provide stable output, low leakage current, and comprehensive protection features. Easy to integrate into your designs, they ensure safety compliance and optimal operation in demanding environments. Purchase now to enhance your equipment's safety, reliability, and efficiency with trusted power conversion technology.
Buy Traco Power THI 3 Series THI32413 now and experience unmatched reliability and performance for medical and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER THI32413?
You can click on the BUY or RFQ button to purchase THI32413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI32413?
You can download the THI32413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI32413?
TRACO POWER
