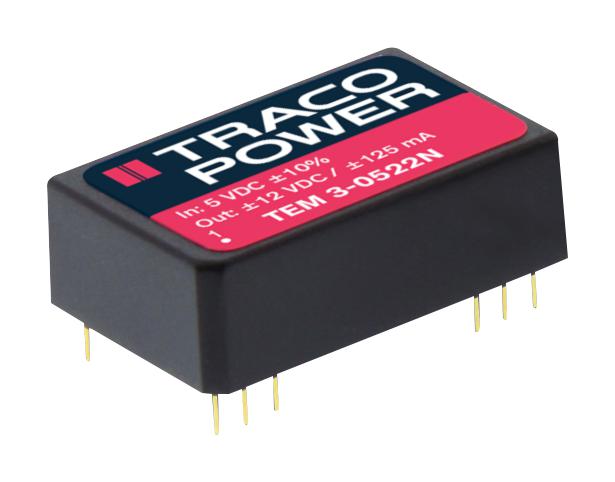

TRACO POWER TEM30522N DC/DC Converter
The TEM 3N series offers 3-watt isolated DC/DC converters in a DIP-24 package, providing tight regulation, low output noise of 30 mVp-p, and operating across -40°C to +85°C. These cost-effective modules are ideal for industrial and consumer electronics, with features including short circuit protection, industry-standard pinout, and high efficiency up to 82%. They meet EN 55022 class A EMI standards, have 1500 VDC input/output isolation, and operate reliably under varying load and temperature conditions, making them a versatile power solution.
TRACO POWER TEM30522N DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC, 12 VDC, 15 VDC, 24 VDC models
- Output Voltage: 5 V, 12 V, 15 V, 24 V
- Output Current Max.: 600 mA, 250 mA, 200 mA, 410 mA
- Efficiency: up to 82%
- Ripple & Noise: 30 mVp-p typ.
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -50°C to +125°C
- Humidity: 95% rel. max.
- Dimension: DIP-24 package, weight 12.4 g
- Protection: Short circuit, automatic recovery
- Regulation: ±0.5% load, ±0.5% input variation
- Switching Frequency: 300 kHz typical
- Input Filter: Meets EN 55022 class A standards
- Soldering Temp.: Max 260°C / 10 sec.
- Compliance: UL, CSA, IEC 60950-1
Buy the Buy TracoPower TEM 3N Series 3 Watt DC/DC Converter Part Number TEM30522N Online
Purchase the TracoPower TEM 3N Series 3 Watt DC/DC Converter TEM30522N online today to experience dependable power conversion. This versatile module offers 12 VDC output at 250 mA, featuring high efficiency up to 82%, low ripple noise, and input/output isolation of 1500 VDC. Its wide operating temperature range from -40°C to +85°C ensures reliable performance under demanding conditions. With short circuit protection, industry-standard pinout, and EN EMI compliance, it is ideal for industrial, medical, and consumer electronics requiring robust and cost-effective power solutions. Order now to upgrade your electronic system with proven TracoPower quality.
Order your TracoPower TEM 3N Series 3 Watt DC/DC Converter TEM30522N today and ensure reliable power delivery for your industrial or electronics projects.
