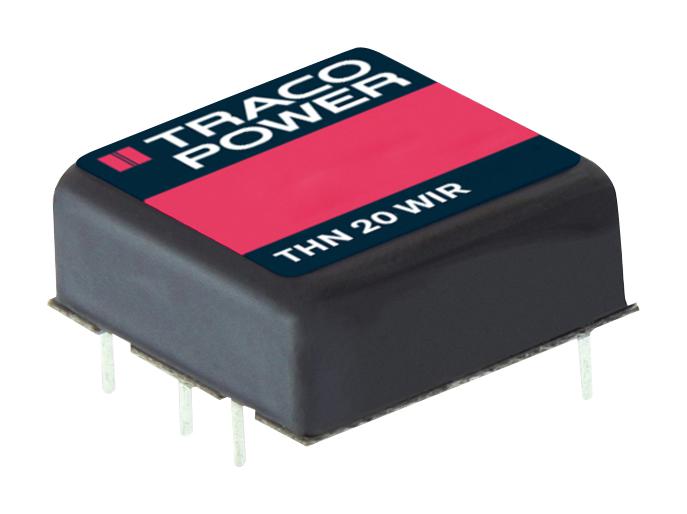

TRACO POWER THN202411WIR DC/DC Converter
The THN 20WIR series comprises ruggedized 20 Watt DC/DC converters designed for high reliability in harsh environments. Encased in a compact 1” x 1” metal package, these converters feature wide 4:1 input voltage ranges from 9-36 VDC, 18-75 VDC, and 36-160 VDC, making them suitable for railway and transportation applications. They offer high efficiency up to 91%, operate from -40°C to +65°C without derating, and include protections against overload, overvoltage, and short circuits. Certifications include EN 50155, EN 61373, and UL 62368-1, supporting safety and EMI standards. Built-in features like remote On/Off, output trimming, and internal filters enhance their versatility and dependability in demanding environments.
TRACO POWER THN202411WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 20 Watts
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +65°C (without derating)
- Isolation Voltage: 3000 VDC input-output, 2250 VDC input-case
- Protection: Overload, overvoltage, short circuit, Automatic recovery
- Start-up Time: 30-40 ms
- Isolation Resistance: 17 MΩ min at 500 VDC
- Vibration & Shock: MIL-STD-810F, EN 61373
- Dimensions: 25.4 x 25.4 x 10 mm (1" x 1" x 0.4")
- Weight: 16 g
- Cooling: Natural convection
Buy the Buy Traco Power DC/DC Converter Part Number THN202411WIR Online
Purchase the Traco Power THN 20WIR series online today for high-reliability power conversion in harsh environments. This rugged 20 Watt DC/DC converter features a compact metal package, wide input voltage range from 9 to 160 VDC, and efficiencies up to 91%, ensuring optimal performance. Its robust design conforms to international safety standards including EN 50155, EN 61373, and UL 62368-1, making it suitable for railway and transportation systems. Equipped with protections for overload, overvoltage, and short circuit, along with remote On/Off and output trim functions, it provides dependable power solutions for demanding applications.
Get Traco Power THN 20WIR today—built for precision and long-lasting durability in demanding industrial and railway environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN202411WIR?
You can click on the BUY or RFQ button to purchase THN202411WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN202411WIR?
You can download the THN202411WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN202411WIR?
TRACO POWER
