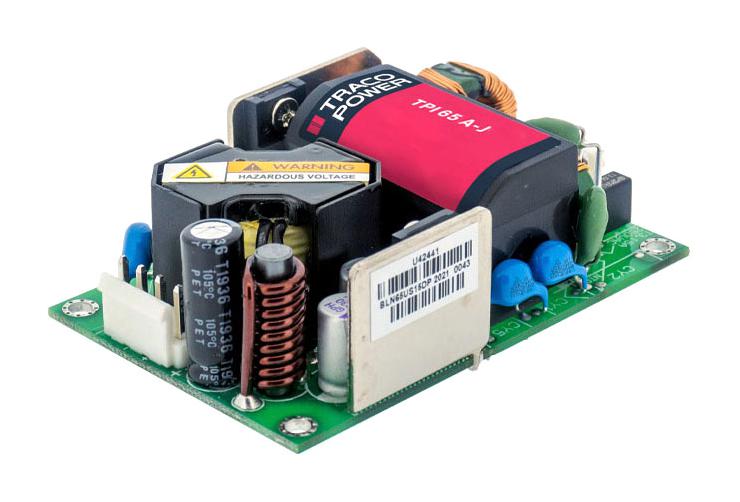

TRACO POWER TPI65124AJP industrial power supply
The TPI 65A-J series offers compact, 65-watt industrial open-frame power supplies with high efficiency up to 94%, reinforced 3000 VAC isolation, and peak power up to 140%. Designed for harsh environments, it operates from -40°C to +85°C with natural convection, meeting ERP standards with low no-load power consumption. Suitable for industrial automation, testing, and demanding applications, it provides reliable protection, high thermal management, and a 3-year warranty. Models feature adjustable outputs, excellent ripple/noise, and comprehensive EMC and safety certifications, making this series ideal for space-critical industrial devices.
TRACO POWER TPI65124AJP industrial power supply Specifications:
- Output Power: 50W to 53W depending on model
- Output Voltage: 5V, 12V, 15V, 24V, 36V, 48V, 53V (adjustable ±10%)
- Output Current: 1.24A to 10A depending on model
- Peak Power: up to 140% for 10 seconds
- Efficiency: up to 94%
- Input Voltage: 85-264 VAC / 120-370 VDC
- Input Frequency: 63 Hz
- Operating Temperature Range: -40°C to +85°C (derating applies)
- Isolation: Reinforced 3000 VAC
- Safety Standards: IEC 62368-1, UL 62368-1, EN 62368-1
- EMC: EN 55032 class B, FCC Part 15 class B
- Protection: Short circuit, overvoltage, automatic recovery
- Dimensions: approx. 76.2 mm x 69.8 mm x 30 mm
Buy the Traco Power Series TPI 65A-J Power Supply: TPI65124AJP
Order the Traco Power TPI 65A-J Series 65 Watt industrial power supply online today to ensure your automation and industrial projects benefit from high efficiency, reinforced safety features, and reliable performance. Designed for space-critical applications, these open frame units operate from -40°C to +85°C, providing peak power up to 140% for up to 10 seconds, with comprehensive certifications ensuring safety and EMC compliance. Enjoy quick delivery and exceptional customer support when you purchase online now!
Buy Traco Power TPI 65A-J Series power supply now and experience unmatched reliability and high efficiency for industrial automation
