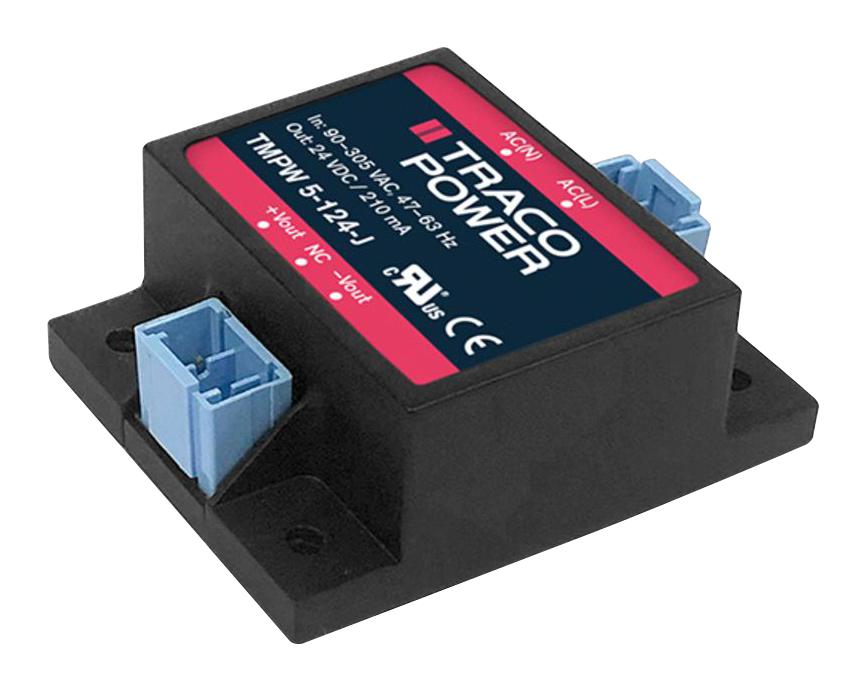

TRACO POWER TMPW5112J Power Supply Module
The TMPW 5-J is a compact 5-watt AC/DC power supply designed for industrial and household applications, offering an extended input range of 90-305 VAC. It features reinforced insulation, an internal EN 55032 class B filter, and a high efficiency up to 83%. The unit operates reliably from -40°C to +70°C, providing 47000 VAC isolation and a low no-load input power under 0.1W. Suitable for space-constrained projects, it ensures safety compliance with IEC/EN/UL 62368-1 standards, making it ideal for modern automation, building, and electronic systems.
TRACO POWER TMPW5112J Power Supply Module Specifications:
- Input Voltage: 90-305 VAC, 100-250 VDC
- Input Frequency: 47-63 Hz (designed for 47-440 Hz)
- Output Power: 5 Watt
- Output Voltage Options: 3.3 V, 5 V, 12 V, 24 V
- Output Current: 1.515 A, 1.0 A, 0.42 A, 0.21 A respectively
- Efficiency: up to 83%
- Isolation Voltage: 47000 VAC
- Operating Temperature: -40°C to +70°C
- Protection Class: II (reinforced insulation)
- Dimensions: 2.17 x 1.08 x 1.0 inches
- Weight: 60g
- Safety Standards: IEC/EN/UL 62368-1, EN 60335-1
- Ripple & Noise: up to 200 mVp-p for 24V model
- Hold-up Time: Minimum 15 ms at 230 VAC
- Inrush Current: 60 A at 230 VAC
- Power Consumption (no load): <0.1 W
- Certifications: UL, IEC, EN
Buy the Traco Power TMPW5112J – Reliable 5 Watt Power Supply for Industrial Applications
Purchase the Traco Power TMPW 5-J power supply today for your industrial or building automation projects. With wide input voltage, reinforced insulation, high efficiency, and safety compliance, this 5-watt module is optimal for space-constrained applications. Its reliable performance across a broad temperature range and certifications ensure safety and durability in demanding environments. Perfect for electronic devices, control panels, and automation systems, order now to enjoy swift online delivery and secure, hassle-free setup for your next project.
Get Traco Power TMPW5112J today—compact, efficient, and built for reliable performance in demanding industrial and automation systems.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW5112J?
You can click on the BUY or RFQ button to purchase TMPW5112J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW5112J?
You can download the TMPW5112J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW5112J?
TRACO POWER
