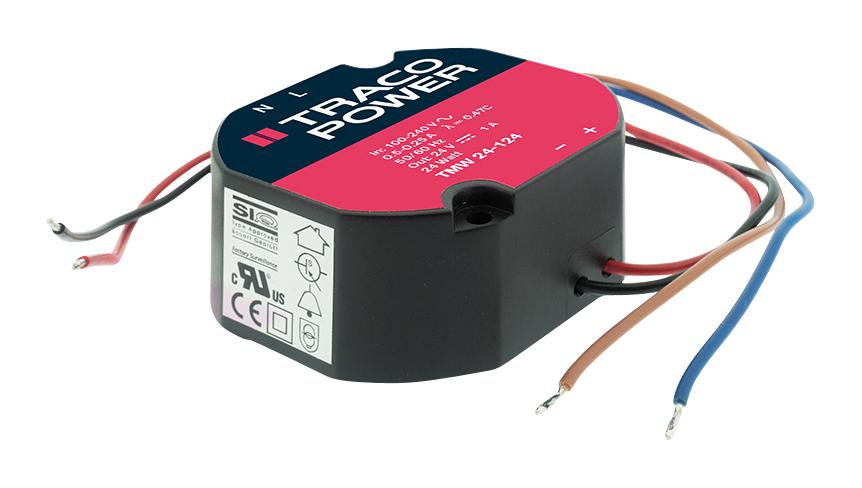

TRACO POWER TMW24124 Medical Power Supply

The TMW 24 series consists of fully encapsulated AC/DC power supplies suitable for medical, household, and industrial applications. They feature compact, dust-resistant, and waterproof IP68 enclosures, complying with IEC/EN 62368-1, IEC/EN 60335-1, and IEC/EN 60601-1 3rd edition standards. Certified for 2x MOPP, these power supplies offer reinforced isolation, making them suitable for protection class II applications. They are equipped with operating temperatures from -20°C to +80°C, can be mounted in wall outlet boxes with flying leads, or screw-mounted inside furniture and on wood. The units provide a leak-free design, with I/O isolation of 4000VAC, and incorporate short-circuit, overvoltage, and overtemperature protections. They come with a 5-year warranty.

Authorized Distributors
Source:Newark
Part No:TMW 24-124
Stock:15
Inv Date:05-30-2026
Price: Unit price: $46.56
Buy/RFQ:
Source:DigiKey
Part No:TMW 24-124
Stock:4
Inv Date:05-30-2026
Price: Unit price: $42.39
Buy/RFQ:
Part No:TMW 24-124
Stock:7
Inv Date:05-31-2026
Price: Unit price: $40.37
Buy/RFQ:
Part No:TMW 24-124
Stock:0
Inv Date:05-30-2026
Price: Unit price: $44.91
Buy/RFQ:

TRACO POWER TMW24124 Medical Power Supply Specifications:

  • Power: 24 Watt
  • Output Voltages & Currents: 5.1 VDC at 4A, 12 VDC at 2A, 24 VDC at 1A
  • Input Voltage: 85 - 264 VAC, 47-63 Hz
  • Operating Temperature: -20°C to +80°C
  • Isolation Voltage: 4000 VAC (input to output)
  • Ingress Protection: IP68 waterproof and dustproof housing
  • Certifications: IEC/EN 62368-1, IEC/EN 60335-1, IEC/EN 60601-1 3rd ed., 2x MOPP certified
  • Leakage Current: < 100 pA
  • Protection: Short-circuit, overvoltage, overtemperature
  • Dimensions: 200 mm x 97 mm x 50 mm
  • Mounting: Wall outlet boxes, screw mountable on wood and furniture
  • Warranty: 5 years

Buy the Buy Traco Power TMW 24 Series Part Number TMW24124 Online

Purchase the Traco Power TMW 24 series power supply online today and enjoy reliable performance with waterproof IP68 protection, reinforced isolation, and a wide operating temperature range from -20°C to +80°C. Ideal for medical, industrial, and household applications, this compact device features multiple certified output options, comprehensive protections including short-circuit, overvoltage, and overtemperature, and a 5-year warranty. Easy to install in wall outlet boxes or furniture, ensuring safe and consistent power delivery in demanding environments.

Buy Traco Power TMW 24 series power supply now and experience reliable, waterproof protection for demanding medical, industrial, and household applications.

Frequently Asked Questions

Where can I buy TRACO POWER TMW24124?

You can click on the BUY or RFQ button to purchase TMW24124 from an authorized TRACO POWER distributor.

How do I troubleshoot issues or seek technical support for part TMW24124?

You can download the TMW24124 datasheet or visit the TRACO POWER website for support.

Who is the manufacturer of TMW24124?

TRACO POWER
