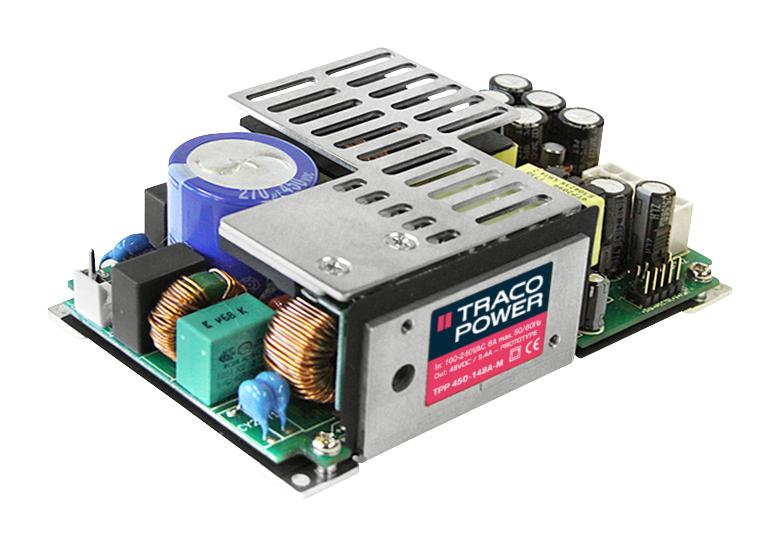

TRACO POWER TPP450148AM Medical Power Supply
The TPP 450A Series is a high-efficiency 450 Watt medical power supply designed for demanding healthcare and safety applications. Encased in a compact 3" x 5" open frame, it offers forced air cooling of up to 375A, or natural convection cooling of 320W at +50°C. Certified for IEC/EN/ES 60601-1 3rd edition with 2XxMOPP, it features reinforced double 1/0 isolation, low leakage current (< 100 pA), and a built-in fan speed control, ensuring reliable performance in medical devices and space-critical environments. Wide input voltage 85-264 VAC and robust protection rated for BF applications.
TRACO POWER TPP450148AM Medical Power Supply Specifications:
- Output Power: 450 Watt
- Output Voltage: 48 VDC, 36 VDC, 24 VDC, 15 VDC, 42 VDC
- Output Current: 94A, 12.54A, 16.6A, 13.3A, 208A
- Input Voltage Range: 85-264 VAC, 120-370 VDC
- Input Protection: Internal fuse 6.3 A/250 VAC
- Efficiency: Up to 94%
- AC Power Consumption (no load): 0.3-0.5 W
- Leakage Current: Max 100 pA
- Isolation Voltage: 4000 VAC input to output
- Dimensions: 3" x 5" x 1.25" (76 x 127 x 32 mm)
- Operating Temp: -40°C to +85°C
- Altitude: Up to 5000 m
- Protection: Overvoltage, overload, short circuit (automatic recovery)
- EMC: IEC 60601-1-2, EN 55032, conducted and radiated emission class B/A
- Vibration & Shock: IEC 60068-2-6, IEC 60068-2-27
- Certifications: IEC/EN/ES 60601-1, UL 62368-1
- Cooling: Forced air (375A) or natural convection (320W at +50°C)
Buy the Traco Power TPP 450A – Reliable Medical Power Supplies for Industrial Applications
Purchase the TPP 450A Series online for a reliable 450-watt medical power supply solution. Certified to IEC 60601-1, it offers reinforced safety isolation, low leakage current, and excellent efficiency up to 94%. Its compact 3" x 5" design and dual cooling options—forced air and convection—make it suitable for demanding medical devices and space-critical applications. The power supply features adjustable output voltages, automatic protection, and wide input compatibility, ensuring safe, stable operation in healthcare environments. Order now to benefit from fast delivery and trusted quality.
Get Traco Power TPP 450A today—built for precision and long-lasting durability in medical and industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TPP450148AM?
You can click on the BUY or RFQ button to purchase TPP450148AM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP450148AM?
You can download the TPP450148AM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP450148AM?
TRACO POWER
