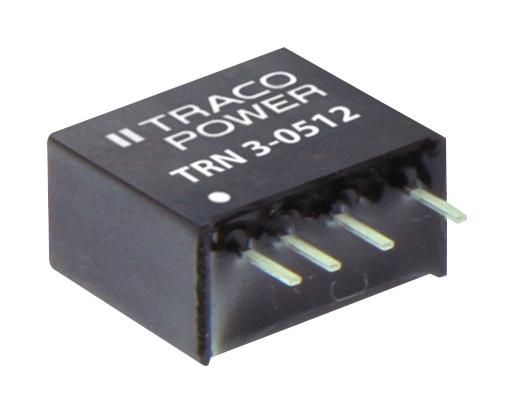

TRACO POWER TRN32411 DC/DC Converter
The TRN 3 Series offers 3 Watt fully regulated DC/DC converters in a compact SIP package measuring 11.9 x 7.7 x 11.0 mm. They operate efficiently in temperatures from -40°C to +85°C and feature 1600 VDC I/0-isolation, short circuit protection, and design compliance with UL 62368-1 and UL 60950-1 standards. Suitable for space-constrained applications, these high-performance converters support wide input voltage ranges up to 75 VDC with high efficiency and reliability during full load conditions up to 65°C ambient temperature, making them ideal for industrial and automation systems.
TRACO POWER TRN32411 DC/DC Converter Specifications:
- Power Output: 3 Watts
- Input Voltage Range: 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltages: 3.3 V, 5 V, 12 V, 15 V, 24 V, 36 V, 48 V
- Output Current: 200 mA to 700 mA depending on model
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 11.9 x 7.7 x 11.0 mm (L x W x H)
- Efficiency: 75% to 84% depending on model
- Ripple and Noise: 50 mVp-p max.
- Surge Voltage: 15 V to 100 V (1 sec)
- MTBF: 4,400,000 hours
- Switching Frequency: ≥100 kHz
- Protection: Short circuit, automatic recovery
- Environmental Compliance: UL 62368-1, UL 60950-1, RoHS
- Soldering Temperature: 260°C for 6 seconds
Buy the Traco Power Series TRN 3 Watt DC/DC Converter: TRN32411
Purchase the Traco Power Series TRN 3 Watt DC/DC Converter online today and enhance your project with this reliable, compact, and high-performance power solution. Designed for space-limited applications, it features wide input voltage ranges, high efficiency up to 84%, and UL 62368-1 compliance. Its compact SIP package measures just 11.9 x 7.7 x 11.0 mm, making it perfect for industrial automation, instrumentation, and control systems. Ensure effective power management and system stability with this robust and certified converter available now online.
Order your Traco Power Series TRN 3 Watt DC/DC Converter today and give your industrial applications the dependable, efficient power they need.
Frequently Asked Questions
Where can I buy TRACO POWER TRN32411?
You can click on the BUY or RFQ button to purchase TRN32411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRN32411?
You can download the TRN32411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRN32411?
TRACO POWER
