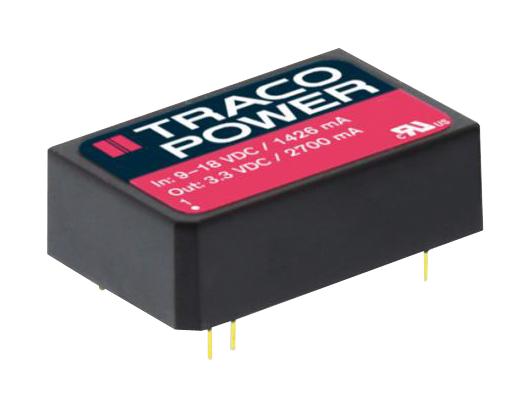

TRACO POWER TRI104811 DC/DC Converter
The TRI 10 Series is a high-performance 10-watt DC/DC converter featuring reinforced I/O isolation—rated for 7071 VDC and capable of withstanding test voltages up to 9000 VDC. It offers a 2:1 input voltage range from 9 to 36 VDC, high efficiency up to 88%, and operate reliably across temperatures from -40°C to +85°C. Designed for industrial, transportation, and instrumentation applications, this compact DIP-24 package ensures safety with advanced certifications and built-in filters, making it a versatile, durable power conversion solution.
TRACO POWER TRI104811 DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC
- Rated Power: 10 W
- Isolation Voltage: 7071 VDC test, 9000 VDC peak
- Operating Temperature: -40°C to +85°C
- Efficiency: Up to 88%
- Input Current at full load: 960 mA (12V), 480 mA (24V), 240 mA (48V)
- Output Voltage Regulation: ±1% for single outputs, ±2% for dual outputs
- Ripple & Noise: 50-70 mVp-p
- Protection: Overload, overvoltage, short circuit
- Dimensions: DIP-24 package
- Housing Material: UL94V-0 rated plastic
- Insulation Resistance: ≥10 MΩ at 500 VDC
- Switching Frequency: 200-280 kHz
- Certifications: IEC 62368-1, UL 62368-1, EN 62368-1
- Ambient Humidity Max: 95%, non-condensing
Buy the Traco Power Series TRI 10 DC/DC Converter: TRI104811
Secure your high-reliability power solution today with the Traco Power Series TRI 10, a 10-watt high-isolation DC/DC converter with reinforced insulation up to 9000 VDC peak. Designed for industrial, transportation, and instrumentation sectors, this compact DIP-24 device features a 2:1 input voltage range from 9 to 36 VDC, offering up to 88% efficiency and complete safety certifications including IEC, UL, and EN standards. Its robust construction ensures stable operation from -40°C to +85°C, with protection against overloads, overvoltages, and short circuits, making it the ideal choice for demanding applications requiring dependable, safe power conversion.
Order your Traco Power Series TRI 10 DC/DC Converter TRI104811 today and ensure reliable, high-isolation power for demanding industrial and transportation applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRI104811?
You can click on the BUY or RFQ button to purchase TRI104811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI104811?
You can download the TRI104811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI104811?
TRACO POWER
