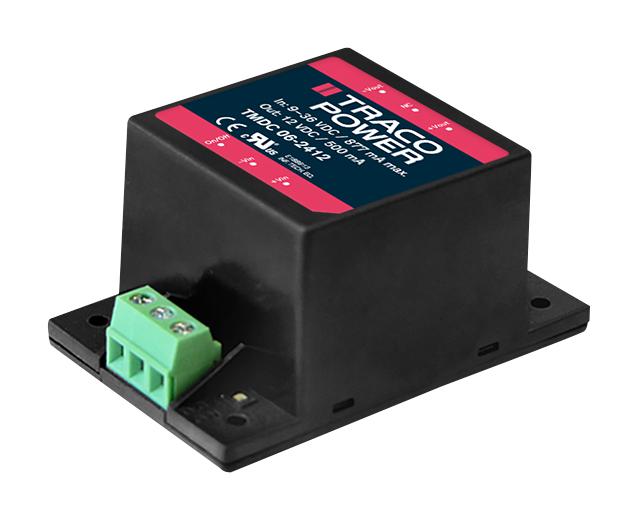

TRACO POWER TMDC064813 Industrial Power Converter
The TMDC 06 Series is a 6-watt, fully encapsulated DC/DC converter designed for harsh industrial environments. It features an ultra-wide input range of 9-36 VDC or 18-75 VDC, high efficiency up to 85%, and reinforced isolation of 3000 VDC. The modules provide multiple output options with excellent line/load regulation, low ripple and noise, and built-in EMC filters meeting EN 55032 class A and EN 55035 immunity standards. Suitable for applications requiring reliable power in rugged conditions, it offers remote on/off, LED status indicator, and safety certifications including UL 62368-1, IEC 62368-1.
TRACO POWER TMDC064813 Industrial Power Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 6 Watts
- Efficiency: up to 85%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +80°C without derating
- Input Current at No Load: 10-8 mA (24V/48V)
- Input Surge Voltage: 50-100 VDC (1s)
- Output Voltage Tolerance: ±2%
- Ripple and Noise: 75-180 mVp-p depending on output
- Output Capacitance: 68-680 pF depending on model
- Protection: Overload, undervoltage, short circuit, automatic recovery
- Certification: UL 62368-1, IEC 62368-1, EN 55032/Class A EMC
- Size: 2.09 x 1.34 x 1.04 inches (53.0 x 33.8 x 26.5 mm)
- Material: UL 94V-0 rated plastic, screw terminal connection
- Temperature Range: -40°C to +80°C without derating
Buy the Buy Traco Power DC/DC Converter TMDC 06 Series Part Number TMDC064813 Online
Purchase the Traco Power TMDC 06 Series 6 Watt DC/DC Converter online today for dependable performance in rugged industrial environments. With an ultra-wide input range, high efficiency of up to 85%, reinforced 3000 VDC isolation, and comprehensive EMC filters, this compact and fully encapsulated module guarantees stable power delivery. It features safety certifications including UL 62368-1, remote on/off, LED status, and excellent load regulation. Ideal for demanding applications, order now and enhance your industrial systems with reliable, certified power modules.
Order your Traco Power Series TMDC 06 6 Watt DC/DC Converter TMDC 06-4813 today and ensure reliable power supply for your harsh industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC064813?
You can click on the BUY or RFQ button to purchase TMDC064813 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC064813?
You can download the TMDC064813 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC064813?
TRACO POWER
