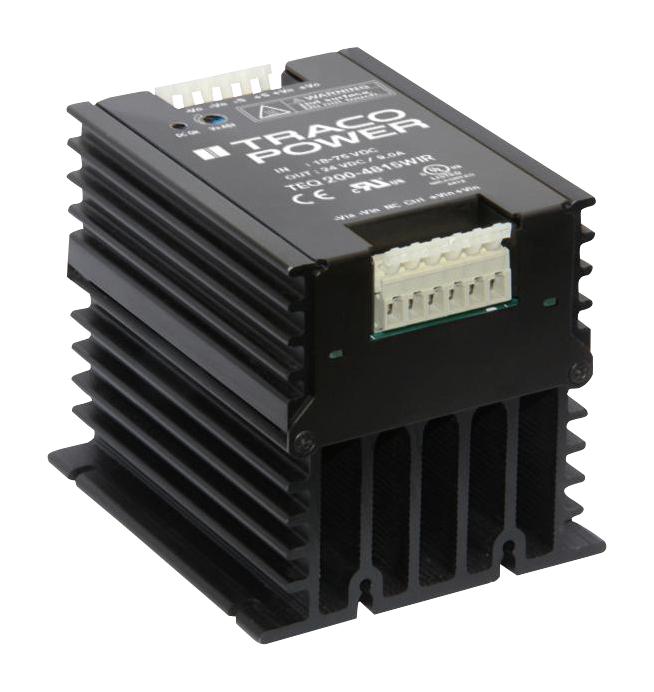

TRACO POWER TEQ2004818WIR Industrial DC/DC Converter
The TEQ 200WIR series from TracoPower consists of 200W isolated DC/DC converters designed for industrial applications. Encased in a rugged, sealed metal enclosure, these modules are suitable for chassis mounting where PCB installation isn't feasible. They feature an ultra-wide 4:1 input voltage range with reverse polarity protection, making them well-suited for battery-operated systems. The series includes advanced features such as output voltage trimming, remote on/off, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic short circuit recovery. Approved according to IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.01, and UL 60950-1 safety standards, these converters are reliable for industrial and railway applications. They support input voltages of 48VDC and 110VDC, with adjustable output voltages of 12VDC, 24VDC, 28VDC, or 48VDC, providing maximum output currents up to 20A at 12V, among other specifications. Rated for operation from -40°C to 105°C, with high efficiency up to 90% and excellent thermal performance, they also feature low ripple and noise suitable for sensitive electronics.
TRACO POWER TEQ2004818WIR Industrial DC/DC Converter Specifications:
- Input Voltage: 12VDC (9.6-13.2V), 19-75VDC, 48VDC (38.4-52.8V), 43-160VDC, 110VDC (22.4-30.8V)
- Output Voltage: 12V, 24V, 28V, 48V
- Output Current: up to 20A at 12V, 75A at 28V, 10A at 24V, 5A at 48V
- Efficiency: up to 90%
- Operating Temperature Range: -40°C to +105°C, with derating above +70°C
- Isolation Voltage: 2250 VDC input/output and input/case, 1600 VDC output/case
- Protection: reverse polarity, undervoltage lockout, overvoltage, short circuit with hiccup
- Ripple & Noise: 125 to 350 mVp-p depending on model
- Size & Weight: Rugged sealed metal case, approx. 800g
- Switching Frequency: Roughly 250 kHz
- Certifications: IEC/EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 107.1-01, IEC/EN 50155 railway approval
- EMC & Immunity: EN 55032, EN 50121-3-2, EN 61000-4 series
- Thermal impedance: 1.45°C/W, over temperature protection at 115°C
- Construction: Aluminium casing with silicone potting (UL94V-0 rated), seal for durability
- MTBF: Greater than 270,000 hours at +55°C
Buy the Buy TracoPower TEQ 200WIR Part Number TEQ2004818WIR Online
Order the TracoPower TEQ 200WIR series online today to enjoy superior power performance and durability in rugged industrial environments. These versatile 200W converters feature ultra-wide input ranges, high efficiency up to 90%, and essential safety certifications. Designed for chassis mounting where PCB installation isn't feasible, they provide adjustable output voltages from 12V to 48V with high maximum currents, ideal for demanding applications like railway systems and industrial automation. With reliable overvoltage, reverse polarity, and short circuit protections, plus excellent thermal performance, these modules ensure continuous operation even in harsh conditions. Order now and enhance your power system with trusted TracoPower quality.
Buy TracoPower TEQ 200WIR now and experience unmatched reliability and high efficiency for demanding industrial and railway power conversion needs.
