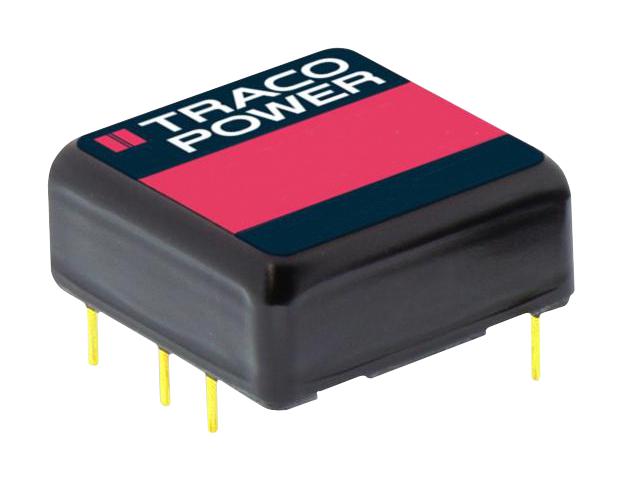

TRACO POWER THL152415WI high-efficiency DC/DC converter
The THL 15WI series is a cost-efficient, high-performance 15 Watt DC/DC converter designed in a compact 1” x 1” x 0.4” metal package. It offers an ultra-wide 4:1 input voltage range from 9 to 36 VDC and 18 to 75 VDC, with efficiency up to 91%. The series features overload, overvoltage, and short circuit protections, along with an internal EN 55032 class A filter and remote On/Off control. Operating from -40°C to +70°C without derating, it suits industrial, communication, and instrumentation applications, meeting UL 62368-1 safety standards.
TRACO POWER THL152415WI high-efficiency DC/DC converter Specifications:
- Output Power: 15 Watt
- Input Voltage Range: 9-36 VDC / 18-75 VDC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Maximum Output Current: 3.4A for 3.3V, 3A for 5V, 1.25A for 12V, 1A for 15V, 625mA for 24V, 500mA for 48V
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +70°C without derating
- Isolation Voltage: 1500 VDC (input to output), 1800 VDC (input to output in 1s)
- Protection: Overload, overvoltage, short circuit
- Filter: Internal EN 55032 class A
- Remote On/Off and Trim functions available
- Dimensions: 1” x 1” x 0.4” (25.4mm x 25.4mm x 10.16mm)
- Case Material: Aluminum alloy with anodized black coating
- Soldering Temp: Max 260°C / 10s
- Certifications: UL 62368-1, RoHS compliant
Buy the Buy Traco Power DC/DC Converter Part Number THL152415WI Online
Enhance your power system with the Traco Power THL 15WI series, a reliable 15 Watt DC/DC converter offering wide input voltage, high efficiency, and robust protection features. Compact and lightweight at just 15 grams, it’s designed for industrial, communication, and instrumentation applications. With an operating temperature range of -40°C to +70°C, internal filters, and UL safety certification, it guarantees stable power conversion with minimal interference. Purchase online now to ensure dependable, cost-effective power solutions for your projects.
Order your Traco Power THL 15WI Series 15 Watt DC/DC converter today and ensure reliable power conversion in your industrial and communication projects.
Frequently Asked Questions
Where can I buy TRACO POWER THL152415WI?
You can click on the BUY or RFQ button to purchase THL152415WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL152415WI?
You can download the THL152415WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL152415WI?
TRACO POWER
