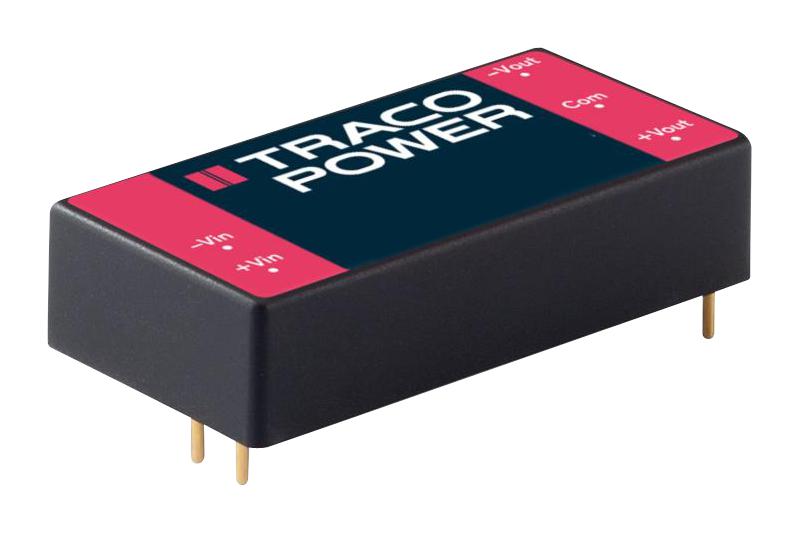

TRACO POWER TRI201223 DC/DC Converter
The TRI 20 Series is a high-performance, 20-watt DC/DC converter with reinforced isolation supporting up to 8000 VDC test voltage and a working voltage of 1000 VAC. It features wide input ranges from 9V to 75V, high efficiency up to 90%, and low no-load power consumption. The compact 2x1 inch design includes internal filters, overload, overvoltage, and short circuit protections, making it ideal for industrial, transportation, and instrumentation applications. Certifications include IEC/EN/UL 62368-1, ensuring safety and reliability in demanding environments.
TRACO POWER TRI201223 DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC (wide, 2:1 ratio)
- Output Power: 20 Watts
- Isolation Voltage: 8000 VDC (test), 1000 VAC working voltage
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +76°C (derating above +55°C)
- Ripple and Noise: 100 mVp-p (12 V), 150 mVp-p (24 V), 100 mVp-p (15 V)
- Dimensions: 2" x 1" x 0.4" (50.8mm x 25.4mm x 10mm)
- Protection: Overload, overvoltage, short circuit, automatic recovery
- Certifications: IEC/EN/UL 62368-1, FCC Part 15 Class A
- Insulation System: Reinforced insulation
- Cooling: Natural convection
- Operating Voltage: 17000 VAC (input to output, 60s test)
- Isolation Resistance: 10,000 MΩ at 500 VDC
- Safety Standards: PD 2 pollution degree, OVC category
- Material: Non-conductive plastic housing, tinned copper pin
Buy the Buy Traco Power DC/DC Converter Part Number TRI201223 Online
Discover the reliable and efficient Traco Power TRI 20 Series DC/DC converter with reinforced isolation and wide input voltage range. Perfect for industrial, transportation, and instrumentation applications, its compact design fits seamlessly into demanding environments. Featuring high efficiency up to 90%, low no-load power consumption, and comprehensive protection circuits, this 20-watt converter guarantees safe, stable, and certified operation. Order online now to enhance your project's safety, performance, and compliance with industry standards quickly and conveniently.
Order your Traco Power TRI 20 Series TRI201223 today and ensure your industrial or transportation project benefits from high reliability and safety.
Frequently Asked Questions
Where can I buy TRACO POWER TRI201223?
You can click on the BUY or RFQ button to purchase TRI201223 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI201223?
You can download the TRI201223 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI201223?
TRACO POWER
