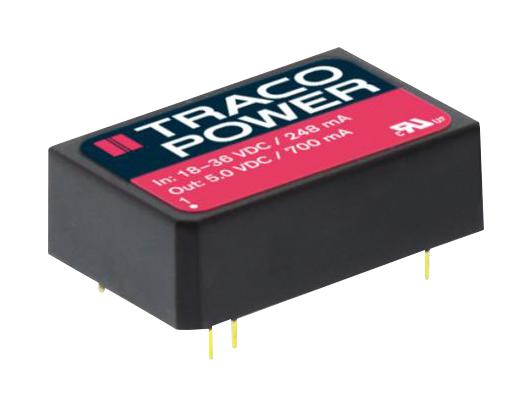

TRACO POWER TRI31211 High Isolation DC/DC Converter
The TRI 3 Series is a compact 3.5 Watt DC/DC converter providing high isolation and precise regulation ideal for industrial, transportation, and instrumentation applications. Featuring reinforced insulation withstanding up to 9000 VDC for 1s and rated for 1000 VAC working voltage, this series offers efficiency up to 87% and an operating temperature range of -40°C to +90°C. It includes integrated safety certifications, overvoltage and overload protection, wide input voltage ranges from 4.5V to 75V, and low no-load power consumption. Perfect for demanding environments requiring reliable electrical isolation and regulated output.
TRACO POWER TRI31211 High Isolation DC/DC Converter Specifications:
- Power: 3.5 Watt
- Input Voltage Range: 4.5-9V, 9-18V, 18-36V, 36-75V DC
- Efficiency: Up to 87%
- Isolation Voltage: 9000 VDC (1s), rated for 1000 VAC working voltage
- Operating Temperature Range: -40°C to +90°C
- No-load Power Consumption: 96-192 mW
- Protection: Overload, overvoltage, short circuit
- Connectors: Through-hole (THD)
- Isolation Resistance: 10 GOhm at 500 VDC
- Isolation Capacitance: 40 pF at 100 KHz
- Common Mode Transient Immunity: 15 kV/ps
- Dimensions: Approx. 24.0 mm x 20.0 mm x 10.0 mm
- Certifications: IEC/EN/UL 62368-1, UL
- Housing Material: UL 94V-0 rated plastic
- Soldering Profile: Wave soldering (260°C / 10s)
Buy the Buy Traco Power TRI 3 Series Part Number TRI31211 Online
Order the Traco Power TRI 3 Series TRI31211 now to ensure reliable, high-isolation power conversion for demanding industrial, transportation, and instrumentation environments. Designed with reinforced insulation and high efficiency up to 87%, this compact 3.5 Watt converter provides stable output across a wide input range. It features integrated safety certifications, overload and overvoltage protection, and operates efficiently from -40°C to +90°C. Perfect for applications requiring electrical isolation, safety compliance, and durability, all available for quick online purchase.
Get Traco Power TRI 3 Series TRI31211 today—built for high isolation and reliable regulated power for demanding industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRI31211?
You can click on the BUY or RFQ button to purchase TRI31211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI31211?
You can download the TRI31211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI31211?
TRACO POWER
