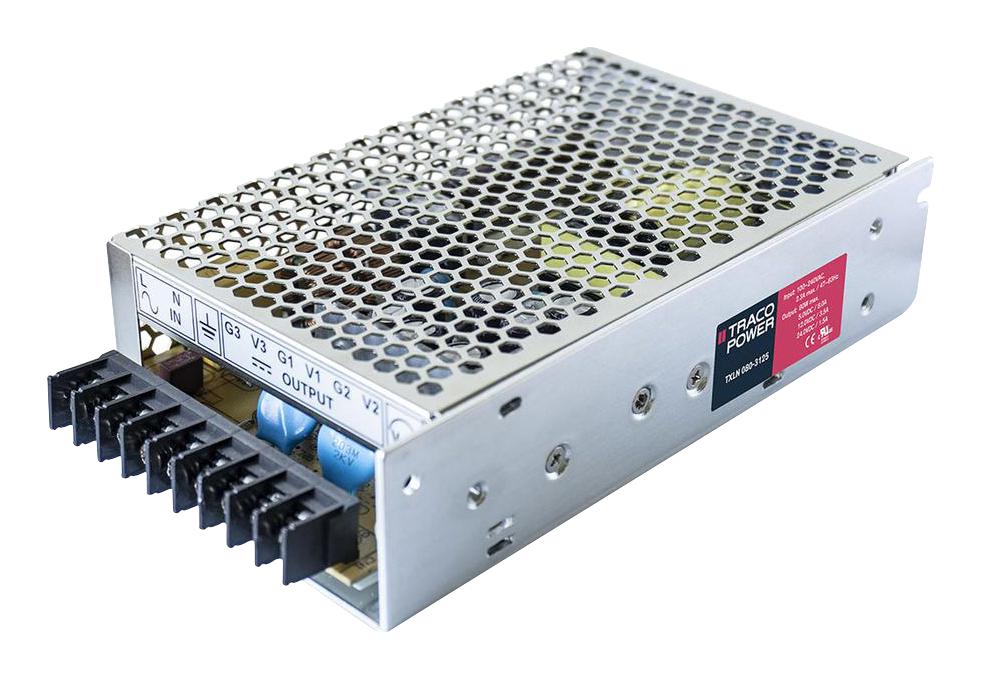

TRACO POWER TXLN0803125 Power Supply Module
The TXLN 080 series is a family of enclosed power supplies featuring a low-profile aluminum case and screw terminal block connections for easy installation in various equipment. Designed for cost-sensitive applications, these power supplies offer universal input voltage 88-264VAC, high efficiency up to 82%, and are convection cooled (no fan). They comply with European EMC standards, the Low Voltage Directive, and safety certifications including IEC/EN/UL 62368-1. The models feature protections against short circuits, overvoltage, overload, operate from -20°C to +70°C, and include a 3-year warranty, making them ideal for industrial and automation applications.
TRACO POWER TXLN0803125 Power Supply Module Specifications:
- Input Voltage: 88-264 VAC (~ull Range), 125-375 VDC (Designed for, no certification)
- Input Frequency: 47-63 Hz
- Input Current: 2.5 A max at 115 VAC full load
- Inrush Current: 70 A max
- Output Power: 80 Watts
- Output Voltage Tolerance: +5%, +6%, +5%, ±3% (varies per model)
- Ripple & Noise: 80-200 mVp-p depending on model
- Efficiency: Up to 82%
- Protection: Short circuit, overvoltage (115-140%), overload
- Temperature Range: -20°C to +70°C
- Cooling System: Natural convection
- Isolation Test Voltage: Input to Output 3000 VAC, Input to Case 1800 VAC
- Housing Material: Aluminum, dimensions approximately 80 x 25 x 20 mm
- Safety Standards: IEC 62368-1, EN 62368-1, UL 62368-1
- Reliability: 3-year warranty
- Protection Class: Class I (connected to PE)
- Pollution Degree: 2
- Switching Frequency: 61-69 kHz
Buy the Traco Power Series TXLN 080 Power Supply: TXLN0803125
Purchase the Traco Power TXLN 080 series power supply online today and enjoy a reliable, high-efficiency solution for industrial applications. Featuring a compact aluminum case, universal input voltage, safety certifications, and advanced protections, it ensures continuous operation even under demanding conditions. Perfect for automation, machinery, and control systems, this power module provides stable power, easy installation, and a 3-year warranty. Secure your system's power needs with this durable and efficient device by ordering now for quick delivery and excellent support.
Buy Traco Power series TXLN 080 power supply now and experience unmatched reliability and performance for industrial automation and control systems.
