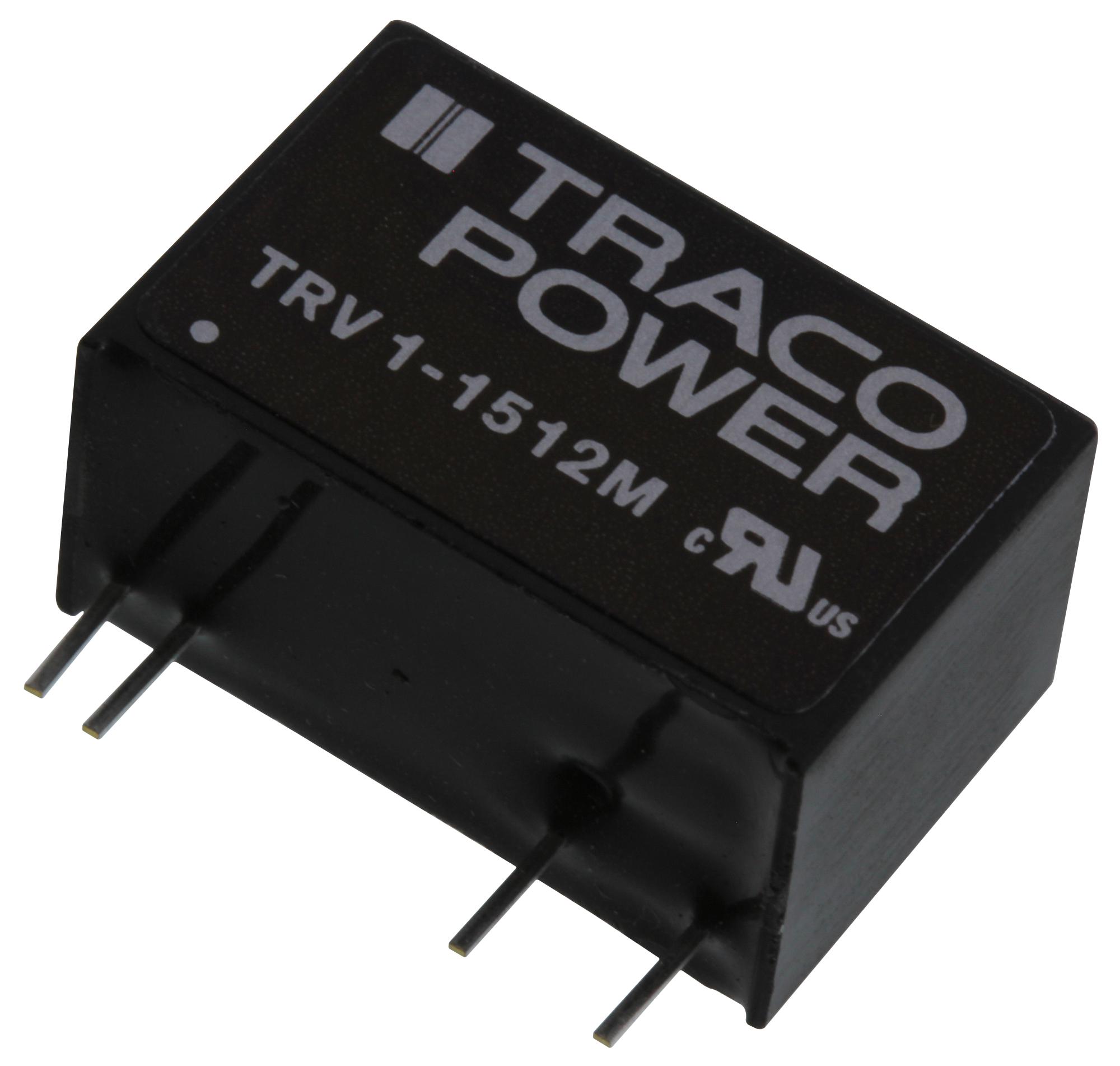

TRACO POWER TRV11512M medical isolated power converter
The TRV 1M series is a compact 1 Watt DC/DC converter designed for medical and industrial applications, featuring reinforced 5000 VAC isolation, semi-regulated outputs, low leakage current under 2 pA, and high efficiency up to 85%. It offers input voltage ranges from 5V to 24V DC, operates from -40°C to +85°C without derating, and includes short circuit protection. Certified according to IEC/EN/UL 60601-1 for medical safety, this converter ensures reliable performance, high isolation, and optimal regulation for critical applications requiring medical-grade isolation and safety compliance.
TRACO POWER TRV11512M medical isolated power converter Specifications:
- Input Voltage Range: 5V, 12V, 15V, 24V DC
- Input Current (no load): 5V models 30 mA, 12V models 30 mA, 15V models 15 mA, 24V models 10 mA
- Surge Voltage: 6V to 40V DC depending on model
- Output Voltage Accuracy: ±3.5% at 60% load, ±3.5% at 90% load
- Output Regulation: 0.2% for single, 7% for dual output models
- Ripple & Noise: 75-100 mVp-p
- Compliance: IEC/EN/UL 60601-1, IEC/EN/UL 62368-1
- Isolation Voltage: 5000 VAC, creepage and clearance 8mm
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: Up to 85%
- Short Circuit Protection: Continuous, automatic recovery
- Housing Material: Non-conductive UL94 V-0 rated plastic
- Dimensions: 38 x 20.8 x 12 mm (approx.), through-hole connection
- Weight: 489 grams
Buy the Traco Power TRV 1-0512M – Reliable Medical DC/DC Converter for Industrial Applications
Purchase the Traco Power TRV 1-0512M online today—engineered for medical and industrial safety with reinforced isolation, high efficiency, and reliable regulation in a compact package. This 1 Watt converter offers a wide input voltage range, low leakage current, and comprehensive certifications including IEC/EN/UL 60601-1. Designed for demanding environments, it ensures safety, reliability, and performance with an operating temperature from -40°C to +85°C without derating. Perfect for critical medical devices and industrial systems requiring isolated power sources.
Get Traco Power TRV 1-0512M today—built for medical safety, high isolation, and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TRV11512M?
You can click on the BUY or RFQ button to purchase TRV11512M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRV11512M?
You can download the TRV11512M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRV11512M?
TRACO POWER
