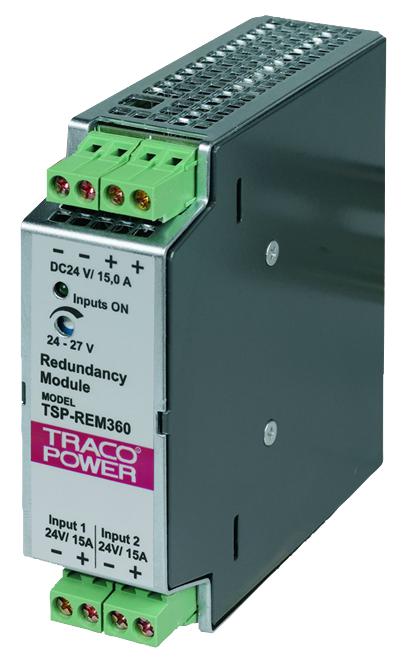

TRACO POWER TSPREM360 industrial power supply
The TSP series offers high-performance, rugged industrial power supplies designed for reliable operation in harsh environments. They feature adjustable output voltage, overcurrent, overvoltage, and overtemperature protection, plus a wide input voltage range of 85-264 VAC or auto-select options. With certifications including UL, CSA, and ATEX, these DIN-rail mount modules support safe, efficient power delivery for process control, machine tools, and demanding industrial applications. They include redundancy, battery management, buffer modules, and remote on/off controls for versatile system configurations, ensuring security and continuous operation under challenging conditions.
TRACO POWER TSPREM360 industrial power supply Specifications:
- Input Voltage: 85-264 VAC universal, auto-select options
- Input Frequency Range: 47-63 Hz
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature: -25°C to +85°C
- Efficiency: 87% typ.
- Output Voltage Range: 12-14 VDC, 24-28 VDC, 36-42 VDC, 48-56 VDC depending on model
- Output Power: 70W to 600W depending on model
- Output Current: varies from 3.75A to 25A depending on model
- Ripple and Noise: 100 mV pk-pk typ. (200 mV max. at Imax)
- Protection: Short-circuit, overvoltage, over-temperature, electronic overload
- Isolation: IEC/EN 60950-1, UL 60950-1, UL 508
- Enclosure Material: Aluminium chassis with stainless steel cover
- Mounting: DIN-rail with optional wall mount bracket
- Cooling: Convection cooling, no internal fan
- Humidity: Up to 95% rel. H, non-condensing
- Certifications: UL, CSA, ATEX, IEC/EN 60950-1
- EMC: EN 55011, EN 61000-6-3/6-2 compliant
- Mechanical Size: Varies per model, typical dimensions approximately between 49 mm to 250 mm in length
- Weight: 0.5 kg to 2.8 kg depending on model
- Protection Degree: IP20
- Environmental: Shock and vibration resistant per IEC 60068-2-6/27
Buy the TracoPower TSP–Reliable Industrial Power Supplies for Harsh Environments
Purchase the TracoPower TSP series industrial power supplies online today to benefit from reliable operation, adjustable output, and comprehensive protections. Designed for harsh environments, these modules meet international safety standards like UL, CSA, and ATEX. They feature efficient convection cooling, DIN-rail mounting, and optional wall brackets, ensuring easy installation and maintenance. Whether you need low or high power models, buying online guarantees quick delivery, expert support, and the performance demanded for process control, machine automation, and safety-critical systems in demanding industrial environments.
Order your TracoPower TSP series 70-600 Watt power supply today and ensure reliable, safe power delivery for your demanding industrial applications.
