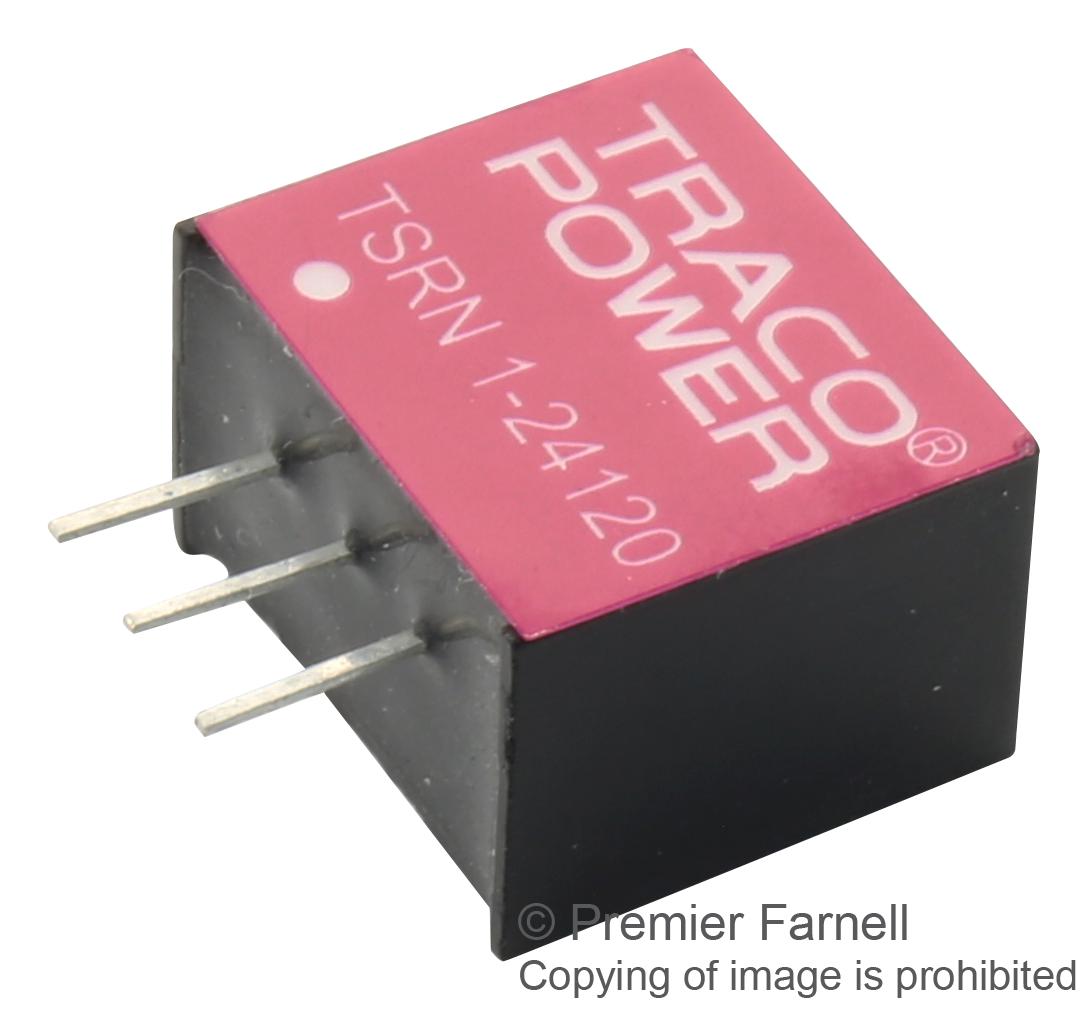

TRACO POWER TSRN124150 DC/DC switching regulator
The TSRN-1 series is a high-efficiency DC/DC switching regulator designed to replace linear regulators like 78xx, offering up to 95% efficiency and operation from 4.6 V to 42 V input. It features a SIP-package compatible with TO-220 footprints, suitable for positive and negative output circuits, with built-in filter capacitors, over-temperature, and short circuit protection. Ideal for energy-sensitive applications, it allows full load operation at ambient temperatures up to +70°C without heatsinks, ensuring reliable performance in compact designs. The regulator's precise regulation, low standby current, and wide input range make it perfect for modern power management needs.
TRACO POWER TSRN124150 DC/DC switching regulator Specifications:
- Input Voltage Range: 4.6-42 VDC (positive output), 4.6-32 VDC (negative output)
- Output Voltage Range: 1.5V to 15V depending on model
- Output Current: Up to 10A
- Efficiency: Up to 95%
- Operation Temperature: -40°C to +85°C (derating above +70°C), max casing temperature +100°C
- Protection: Over-temperature, short circuit, continuous current limitation 2.0A
- Ripple and Noise: 50-75 mVpk-pk depending on model
- Switching Frequency: 300-580 kHz
- Input Filter: Internal capacitors, input capacitor 22 pF/50V for >36V input
- Durability: MTBF >6,000,000 hours, RoHS and Reach compliant
- Physical: Non-conductive plastic casing, silicon potting, weight 1.9 g
- Soldering: Max. +265°C for 10 sec.
Buy the TracoPower Series TSRN DC/DC Regulator: TSRN124150
Order the TracoPower TSRN124150 online today and enhance your circuit's efficiency with this high-performance, compact, and reliable power regulator. Featuring up to 95% efficiency, extensive protection functions, and versatile input/output configurations, it’s perfect for energy-sensitive applications. Enjoy quick delivery and professional customer support when purchasing online. This regulator’s precise regulation, low standby current, and robust design ensure seamless integration into your projects. Invest in quality power management—buy the TSRN124150 today and strengthen your designs with dependable power solutions.
Buy TracoPower TSRN124150 now and experience unmatched efficiency, reliable low noise output, and robust protection features for your power management solutions.
