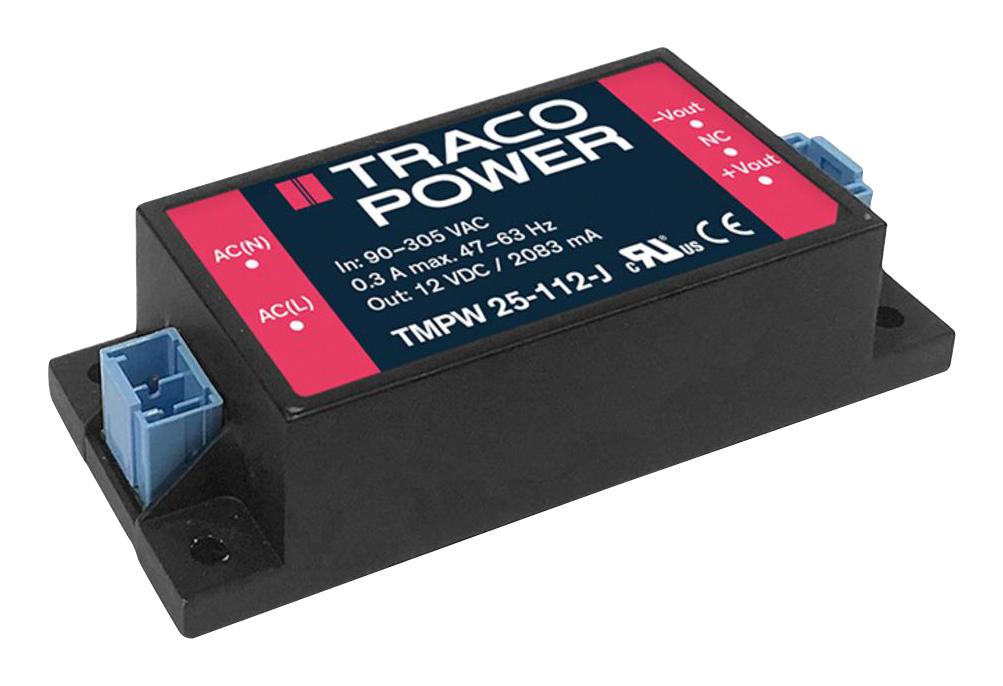

TRACO POWER TMPW25112J Power Supply Module
The TMPW 25-J series is a compact, 25-watt AC/DC power supply designed for industrial and household applications. Featuring a wide input voltage range of 90-305 VAC, it offers high efficiency up to 88% and compliance with safety standards IEC/EN/UL 62368-1. The unit provides reinforced insulation, an output voltage of 12 VDC with a maximum current of 2,083 mA, and an isolated power module in a plastic encapsulated case. It operates reliably from -40°C to +70°C and includes internal noise filtering, overvoltage, and short-circuit protections, making it suitable for demanding environments.
TRACO POWER TMPW25112J Power Supply Module Specifications:
- Input Voltage: 90-305 VAC, 100-250 VDC (264 VAC max. for household)
- Input Frequency: 47-63 Hz (designed for 47-440 Hz)
- Output Power: 25 W
- Output Voltage: 12 VDC
- Output Current: 2,083 mA
- Efficiency: up to 88%
- Isolation Voltage: 4000 VAC
- Operating Temperature Range: -40°C to +70°C
- Leakage Current: 250 μA max.
- Protection: Overvoltage (105-145% Vout), continuous short-circuit, automatic recovery
- Housing Material: Plastic (UL 94 V-0 rated)
- Dimensions: Approximately 3.48 x 1.08 inches
- Safety Certifications: IEC 62368-1, UL 62368-1, EN 60335-1
- Noise Filter: Internal EN 55032 class B
- Protection Class: Class II (Reinforced Insulation)
Buy the Traco Power TMPW 25-J – Reliable Power Supply for Industrial Applications
Get the Traco Power TMPW 25-J series power supply online today and enjoy a compact, energy-efficient, and reliable solution for industrial and household applications. With wide input voltage compatibility, high efficiency up to 88%, reinforced insulation, and multiple safety certifications, this 25-watt device ensures safe and continuous operation in temperature ranges from -40°C to +70°C. Its internal noise filter reduces external interference while and overvoltage and short-circuit protections safeguard your equipment. Purchase now for secure, high-performance power management with a 3-year warranty, quick delivery, and excellent technical support.
Buy Traco Power TMPW 25-J now and experience unmatched reliability and performance in demanding industrial and household environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW25112J?
You can click on the BUY or RFQ button to purchase TMPW25112J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW25112J?
You can download the TMPW25112J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW25112J?
TRACO POWER
