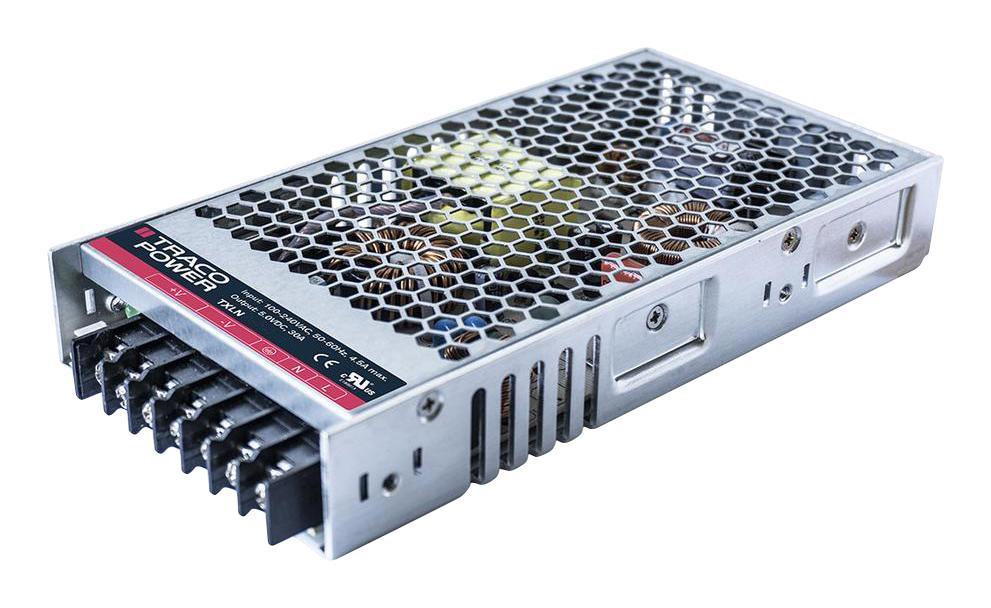

TRACO POWER TXLN150112 Power Supply
The TXLN 150 series is a family of compact, encased power supplies suitable for various cost-sensitive applications. Featuring a low-profile metal case and screw terminal connections, these units are easy to install. They offer universal input voltage ranging from 85 to 264 VAC and are compliant with European EMC standards and the Low Voltage Directive (LVD). The power supplies are convection-cooled (fanless), with high efficiency up to 88%, and include protections against short circuit, overvoltage, and overload. They are certified to IEC/EN/UL 62368-1 safety standards. Designed for reliable operation, they operate in temperatures from -30°C to +70°C, with a switching frequency of 61-69 kHz (PWM). The aluminum housing, protection class I (with earth connection), pollution degree 2, and overvoltage category II ensure safety and durability. A 3-year warranty is provided.
TRACO POWER TXLN150112 Power Supply Specifications:
- Input Voltage: 85-264 VAC, 120-375 VDC (designed for, no certification)
- Input Frequency: 47-63 Hz
- Input Current at full load, 115 VAC: 2,200 mA max.
- Input Inrush Current at 230 VAC: 45 Amax.
- Power Factor at 230 VAC: ≥0.95
- Output Power: 150 W
- Output Voltage Range: 5V, 12V, 24V, 48V (adjustable ±10%)
- Output Current: 30A for 5V, 12.5A for 12V, 6.3A for 24V, 3.2A for 48V
- Efficiency: Up to 88%
- Ripple & Noise: 100-200 mVp-p depending on model
- Protection: Short circuit, overvoltage (115-140%), overload
- Isolation Test Voltage: 3000 VAC input to output, 1800 VAC input to case
- Operating Temperature: -30°C to +70°C
- Cooling: Natural convection
- Dimensions: Compact metal case, weight approximately 560 g
- Insulation: Reinforced insulation, pollution degree 2
- Certifications: IEC/EN/UL 62368-1, CE
Buy the Buy Traco Power TXLN150112 Power Supply Part Number TXLN150112 Online
Purchase the Traco Power TXLN150112 power supply online today and ensure your equipment runs efficiently and safely. With a compact design, universal input voltage, high efficiency up to 88%, and advanced protections including short circuit, overvoltage, and overload safeguards, this power supply guarantees stability and longevity. Easy to install, convection-cooled, and certified to IEC/EN/UL 62368-1 standards, it is ideal for cost-sensitive industrial and automation applications. Experience seamless operation and peace of mind with a reliable 3-year warranty by ordering online now.
Buy Traco Power TXLN150112 power supply now and experience reliable, high-efficiency operation for your industrial, automation, or control applications.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN150112?
You can click on the BUY or RFQ button to purchase TXLN150112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN150112?
You can download the TXLN150112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN150112?
TRACO POWER
