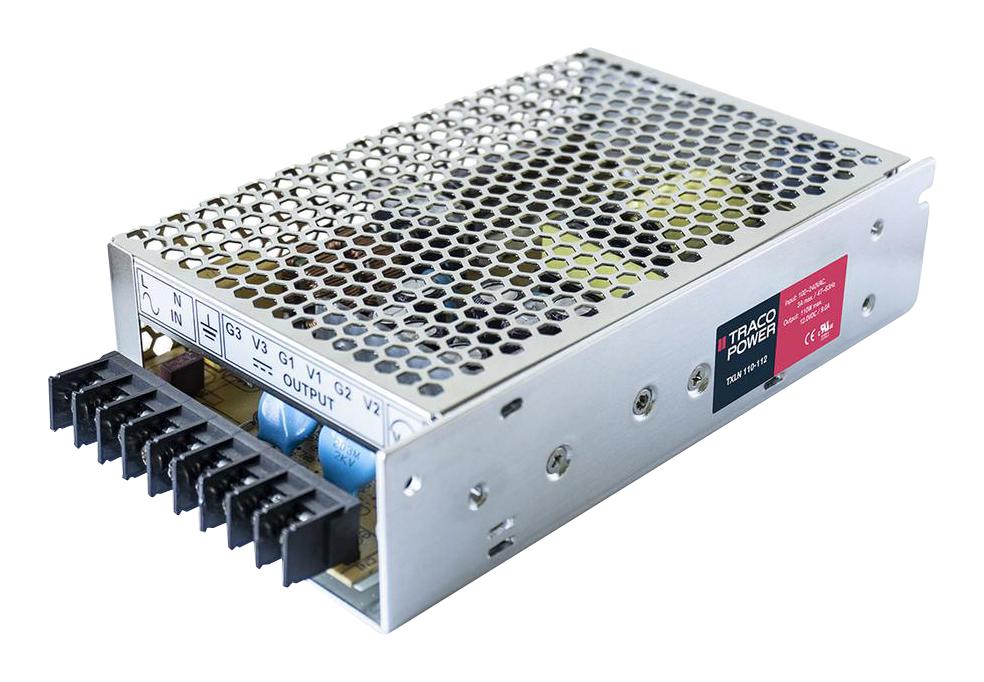

TRACO POWER TXLN110112 Power Supply
The TXLN 110 series is a family of encased power supplies designed for a wide range of cost-critical applications. Featuring a low-profile metal case and screw terminal block connection, they offer easy installation in various equipment. These power supplies support universal input voltage (88-264VAC) and comply with European EMC standards and the Low Voltage Directive (LVD). They operate via convection cooling (no fan), achieving high efficiency up to 87%. Additional features include compliance with EN 61000-3-2, short circuit, overvoltage, and overload protection, IEC/EN/UL 62368-1 safety approvals, and a 3-year product warranty. Suitable for -20°C to +70°C, with robust aluminium housing.
TRACO POWER TXLN110112 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC
- Output Power: 100 W
- Output Voltage: 5 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Output Current: 20A, 9.2A, 7.3A, 4.6A, 2.3A
- Efficiency: Up to 87%
- Operating Temperature: -20°C to +70°C
- Cooling: Convection cooled
- Switching Frequency: 61-69 kHz
- Isolation Voltage: 3000 VAC (input to output), 1800 VAC (input to case), 500 VAC (output to case)
- Protection: Short circuit, overvoltage, overload
- Safety Standards: IEC 62368-1, UL 62368-1
- Housing: Aluminum, low profile metal case
- Connection: Screw terminal
- Pollution Degree: PD 2
- Overvoltage Category: OVC II
Buy the Traco Power Series TXLN 110 Watt Power Supply: TXLN110112
Purchase the high-efficiency Traco Power TXLN 110 series power supply online today. Featuring universal input (88-264VAC), multiple output voltages up to 48V, and protections against short circuits, overvoltage, and overload. With advanced safety certifications including IEC 62368-1 and UL 62368-1, this compact, convection-cooled unit is ideal for industrial, automation, and control equipment requiring reliable and safe power distribution. Enjoy peace of mind with a 3-year warranty and easy screw terminal connections for straightforward installation.
Get Traco Power TXLN110112 today—built for high efficiency, reliability, and cost-critical industrial applications.
