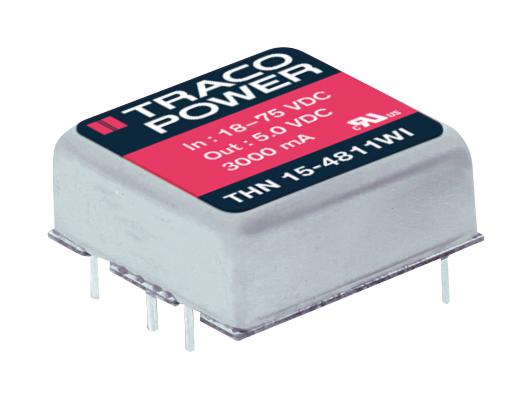

TRACO POWER THN154811WI DC/DC Converter Module
The THN 15WI series offers high-performance, encapsulated 15W DC/DC converter modules designed for space-constrained industrial and communication applications. Featuring ultra-wide input voltage ranges of 9-36 VDC and 18-75 VDC, these compact units deliver regulated output voltages with up to 87% efficiency. They operate across temperatures from -40°C to +85°C, include remote On/Off, and have a high isolation voltage of 1500 VDC. These converters are ideal for battery-powered equipment, mobile instrumentation, and distributed power architectures, providing reliable power solutions with a small form factor.
TRACO POWER THN154811WI DC/DC Converter Module Specifications:
- Power: 15W
- Size: 1.0” x 1.0” x 0.4”
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 48V
- Maximum Output Current: 4A
- Efficiency: up to 87%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- Remote On/Off: Yes
- Output Voltage Trim: Yes, adjustable
- MTBF: >1.4 million hours
- Soldering Temperature: 265°C / 10 s max
- Weight: 15 g
- Certifications: UL60950-1, EN 60950-1
- Power Derating: 2.2%/K above 60°C
- Isolation Resistance: >1,000 MΩ at 500 VDC
Buy the TracoPower THN 15WI – Reliable DC-DC Converter for Industrial Applications
Order the TracoPower THN 15WI series online today and enjoy high efficiency, compact size, and reliable power conversion for industrial electronics, communication equipment, and mobile instrumentation. These 15W modules feature ultra-wide input voltage ranges of 9-36 VDC and 18-75 VDC, making them suitable for demanding industrial environments. With remote On/Off, adjustable output voltages, and a high isolation voltage of 1500 VDC, they ensure safe and dependable operation across a diverse range of applications. Secure your power needs with fast delivery and guaranteed quality.
Buy TracoPower THN 15WI now and experience unmatched reliability and high performance in space-critical industrial power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER THN154811WI?
You can click on the BUY or RFQ button to purchase THN154811WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN154811WI?
You can download the THN154811WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN154811WI?
TRACO POWER
