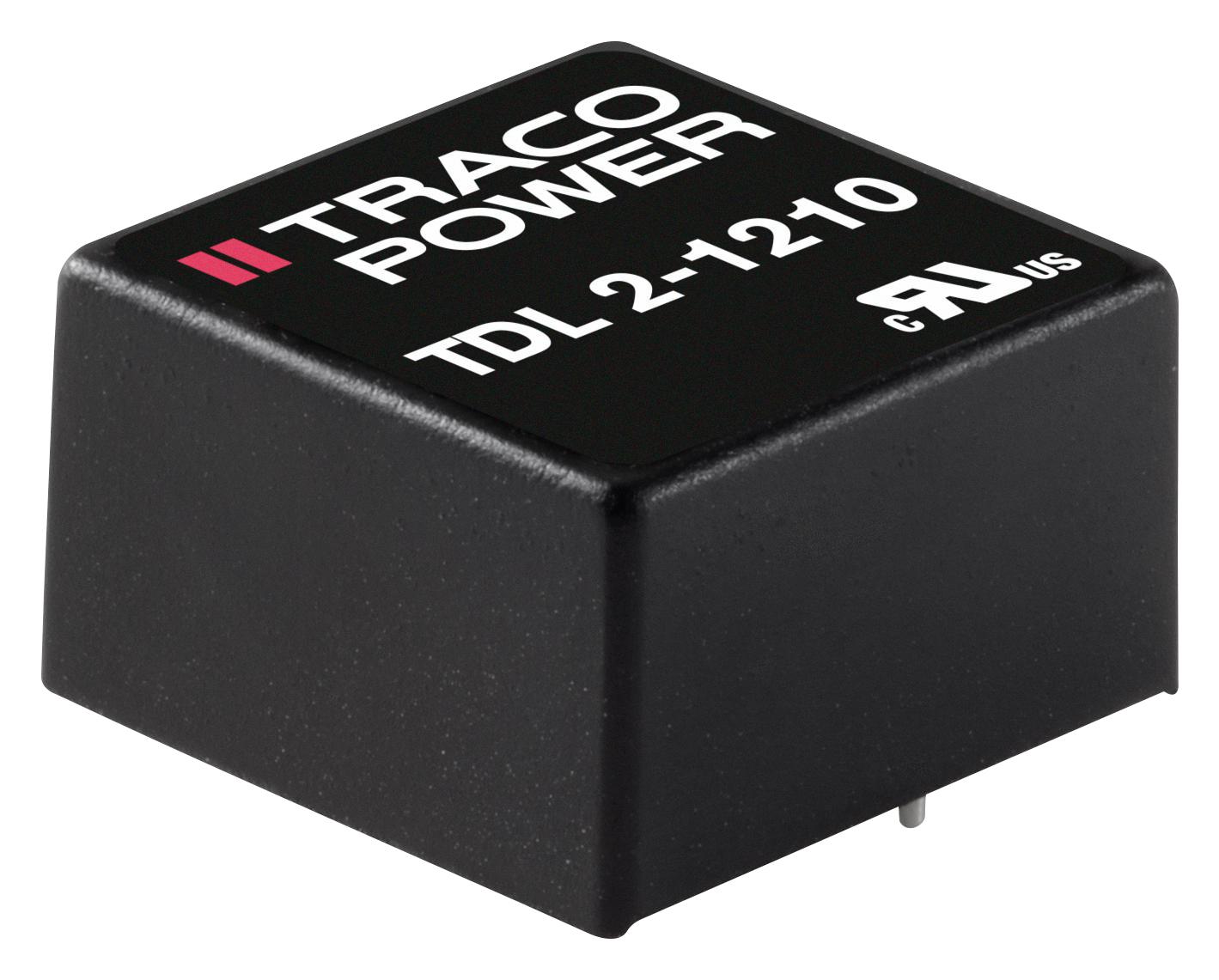

TRACO POWER TDL24812 DC/DC Converter
The TDL 2 series from TracoPower contains 2W regulated DC/DC converters in a compact package measuring 14mm x 8mm x 14mm. Designed for versatile applications, they support input voltages from 5V to 48VDC with a 2:1 wide input range and provide output voltages including 3.3V, 5V, 12V, 15V, and bipolar options ±5V, ±12V, ±15V. They feature automatic short circuit protection, current limiting, efficiencies up to 87%, and a switching frequency of at least 100kHz. With an isolation voltage of 1500VDC for 60 seconds, they operate reliably from -40°C to 70°C, rated under UL and IEC standards, with a 3-year warranty, making them ideal for industrial and electronic control applications.
TRACO POWER TDL24812 DC/DC Converter Specifications:
- Power: 2W
- Input Voltage Range: 5V to 48VDC (wide 2:1 range)
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum Output Current: 67mA to 400mA depending on model
- Efficiency: up to 87%
- Switching Frequency: ≥100 kHz
- Isolation Voltage: 1500VDC for 60 seconds
- Ripple and Noise: 70mVp-p
- Operating Temperature: -40°C to 70°C
- Short Circuit Protection: Continuous, automatic recovery
- Input Surge Voltage: 12V to 50V max.
- Operating Humidity: 95% RH max.
- Dimensions: 14mm x 8mm x 14mm
- Case Material: non-conducting FR4, potting silicone
- Pin Material: tinned copper
- Weight: 3.9g
- Certification: UL 60950-1, IEC/EN 60950-1
- Isolation Capacitance: 100pF
- Isolation Resistance: >1 GΩ
- Reliability MTBF: >4,226,000 hours
Buy the Buy Traco Power TDL 2 Series Part Number TDL24812 Online
Order the Traco Power TDL 2 series DC/DC converter online today. This 2W regulated power module with a wide input voltage range offers high efficiency of up to 87%. Its compact size, measuring just 14mm x 14mm x 8mm, makes it ideal for space-constrained applications. Featuring an isolation voltage of 1500VDC, continuous short circuit protection, and operating from -40°C to 70°C, it ensures reliable performance across diverse industrial and control environments. Purchase now for quick delivery and maximum operational stability.
Buy Traco Power TDL24812 now and experience unmatched reliability and high efficiency in your power conversion projects.
Frequently Asked Questions
Where can I buy TRACO POWER TDL24812?
You can click on the BUY or RFQ button to purchase TDL24812 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL24812?
You can download the TDL24812 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL24812?
TRACO POWER
