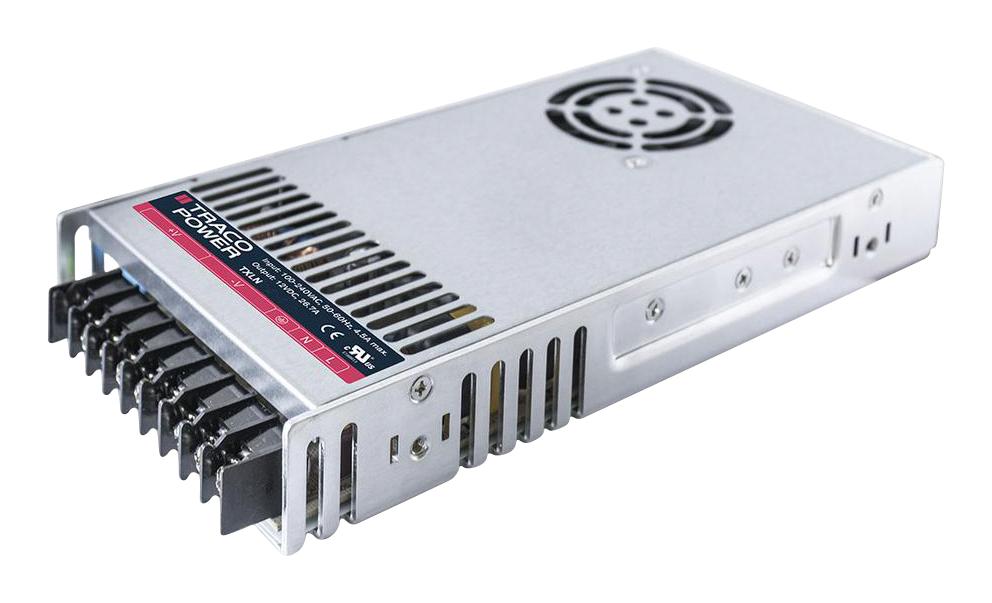

TRACO POWER TXLN320124 Industrial Power Supply
The TXLN 320 series is a family of compact, encased power supplies designed for cost-sensitive applications. Featuring a low-profile metal enclosure and screw terminal connections, these power supplies are easy to install in various equipment. They support a universal input range of 85-264VAC and adhere to European EMC standards and the Low Voltage Directive (LVD). Key features include active Power Factor Correction greater than 0.95, high efficiency up to 88%, compliance with EN 61000-3-2 standards, and multiple protection functions such as short circuit, overvoltage, and overload protection. They hold IEC/EN/UL 62368-1 safety approvals and come with a 3-year warranty. The units are prepared for connection to protective earth (PE), with a pollution degree rating of PD 2 and overvoltage category OVC II. Operating temperature ranges from -30°C to +70°C, with a switching frequency between 90kHz and 110kHz (PWM). Constructed with an aluminum housing and featuring screw terminal connections, these power supplies are suitable for various industrial and electronic applications.
TRACO POWER TXLN320124 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC full range, 120-375 VDC designed for, no certification
- Input Frequency: 47-63 Hz
- Output Power: 320 W
- Output Voltage: 24 VDC (nominal)
- Output Current: 13,400 mA
- Efficiency: Up to 88%
- Power Factor: ≥0.95 at 230 VAC
- Voltage Regulation: ±2%
- Ripple and Noise: 150 mVp-p maximum on 5 Vout model
- Protection: Short circuit, overvoltage (115-140% of Vout), overload (105-135%), automatic recovery
- Input-Output Isolation: 3000 VAC
- Operating Temperature: -30°C to +70°C
- Cooling: Forced air cooling with internal fan
- Certifications: IEC/EN/UL 62368-1, UL 62368-1
- Dimensions: Compact low-profile aluminum case, screw terminals, weight approximately 850g
- Ingress Protection: IP rated suitable for industrial environments
- Connection: Screw terminal block, 4 pins (L, N, PE, Vout)
Buy the Traco Power Series 320 Power Supply: TXLN320124
Order the Traco Power TXLN 320124 online today and enjoy a reliable 320-watt power supply designed for high efficiency, robust protections, and easy installation. Ideal for industrial applications, this unit supports a wide input range of 85-264VAC, offers automatic short circuit and overvoltage protections, and features a compact aluminum housing with screw terminal connections for effortless setup. With IEC/EN/UL safety approvals, a 3-year warranty, and compliance with strict EMC standards, this power supply ensures optimal performance in demanding environments. Purchase now to get a durable and high-performance solution for your power needs.
Get Traco Power TXLN320124 today—built for precision, efficiency, and long-lasting durability.
