TRACO POWER TPI30105AJP Industrial Power Supply
The TPI 30A-J series is a compact 30-Watt open frame power supply designed for industrial applications, offering high efficiency up to 90%, reinforced 3000 VAC isolation, and an operating temperature range from -40°C to +85°C. It features peak power up to 130%, low no-load power consumption below 0.3W, and adheres to safety and EMC standards EN 62368-1, IEC 62368-1, UL 62368-1, with a 3-year warranty. Suitable for automation, test & measurement, and space-critical devices, it provides reliable performance in harsh environments.
TRACO POWER TPI30105AJP Industrial Power Supply Specifications:
- Output Power: 30 W
- Output Voltage: 3.3 VDC (297-363 VDC), 5 VDC (4.0-55 VDC), 12 VDC (96-132 VDC), 15 VDC (12.0-16.5 VDC), 24 VDC (19.2-26.4 VDC), 36 VDC (28.8-39.6 VDC), 48 VDC (38.4-52.8 VDC), 53 VDC (42.4-58.3 VDC)
- Output Current: max 7,576 mA (3.3V), 8,000 mA (5V), 3,333 mA (12V), 2,667 mA (15V), 1,667 mA (24V), 1,444 mA (36V), 833 mA (48V), 755 mA (53V)
- Input Voltage Range: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 47-63 Hz
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C, derating above +60°C
- Isolation Voltage: 3000 VAC reinforced
- Protection Class: Class II with reinforced insulation
- Standards: EN 62368-1, IEC 62368-1, UL 62368-1
- Ripple & Noise: 50 mVp-p (typical)
- Hold-up Time: Min 80 ms at 230 VAC
- Short Circuit Protection: Continuous, auto recovery
- Overvoltage Protection: 125-140% of Vout nom.
- Environmental: Humidity up to 95%, vibration IEC 60068-2-6
- Dimensions: Approx 3.34 x 1.36 inches

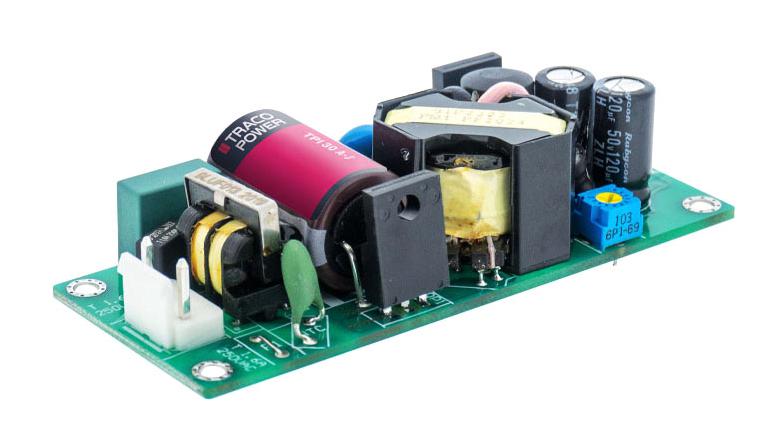

Buy the Buy Traco Power TPI 30A-J Part Number TPI30105AJP Online
Enhance your industrial automation or testing setup with the Traco Power TPI 30A-J power supply. This 30-watt open frame model offers exceptional efficiency up to 90%, reinforced 3000 VAC isolation, and operates efficiently across a wide temperature range from -40°C to +85°C. Designed for space-critical applications, it features peak power capabilities up to 130%, low no-load power consumption below 0.3W, and compliance with safety standards EN 62368-1. Reliable, durable, and easy to integrate, it’s the ideal choice for demanding industrial environments.
Get Traco Power TPI30105AJP today—built for high efficiency and reliable industrial power applications in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TPI30105AJP?
You can click on the BUY or RFQ button to purchase TPI30105AJP from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPI30105AJP?
You can download the TPI30105AJP datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPI30105AJP?
TRACO POWER
