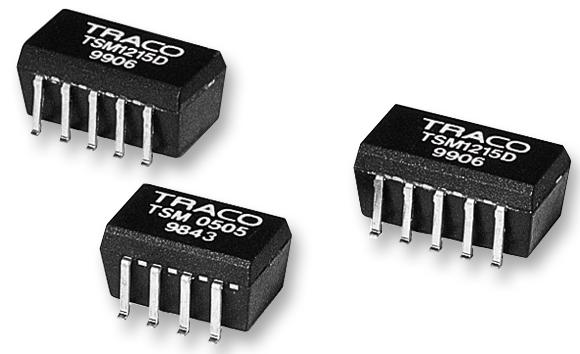

TRACO POWER TSM1205D DC/DC Converter
The TSM series are compact, isolated 1W DC/DC converters in a molded plastic SMD package suitable for automated production. They feature both single and dual outputs with 1000 VDC isolation, high efficiency, and operate within -40°C to +85°C. These converters are ideal for point of load power conversion, ground loop elimination, noise reduction, and digital applications. Designed for lead-free reflow soldering up to 245°C, they offer reliable performance, low ripple (<120 mV pk-pk), and a 3-year warranty, ensuring robust and efficient power solutions in industrial environments.
TRACO POWER TSM1205D DC/DC Converter Specifications:
- Power: 1 Watt
- Input Voltage: 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC (varies by model)
- Output Voltage: 5 VDC, 9 VDC, 12 VDC, 15 VDC (single and dual output models)
- Output Current Max: 200 mA, 110 mA, 80 mA, 65 mA (depending on model and configuration)
- Efficiency: Up to 82%
- Isolation Voltage: 1000 VDC (input/output)
- Operating Temperature: -40°C to +85°C
- Ripple & Noise: 120 mV pk-pk max (20 MHz bandwidth)
- Switching Frequency: 100 kHz typ.
- Supply Humidity: 95% RH non-condensing
- Reflow Solder Temperature: Up to 245°C
- Dimensions: Small footprint suitable for SMD applications, pin pitch tolerances ±0.13 mm
- Certification: RoHS, UL94V-0 flammability rating, Moisture sensitivity level 3
- Reliability: MTBF > 2,000,000 hours at +25°C
- Input/Output Capacitance: Single output models 22 pF max, dual output models 10 pF max
Buy the TracoPower TSM1205D – Reliable Digital Power for Industrial Applications
Experience dependable power conversion with the TracoPower TSM1205D DC/DC converter. Its compact size and high efficiency make it ideal for industrial and digital applications. Designed for seamless SMD installation with lead-free reflow soldering up to 245°C, this converter provides 5V output at 200mA, with 1000VDC isolation and low ripple (<120mV). Built to endure operating temperatures from -40°C to +85°C, it ensures reliable performance in harsh environments. Purchase online now to upgrade your power system with this robust, certified converter, backed by a 3-year warranty.
Order your TracoPower TSM1205D today and ensure stable, efficient power for your industrial projects with this compact, high-performance converter.
Frequently Asked Questions
Where can I buy TRACO POWER TSM1205D?
You can click on the BUY or RFQ button to purchase TSM1205D from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSM1205D?
You can download the TSM1205D datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSM1205D?
TRACO POWER
