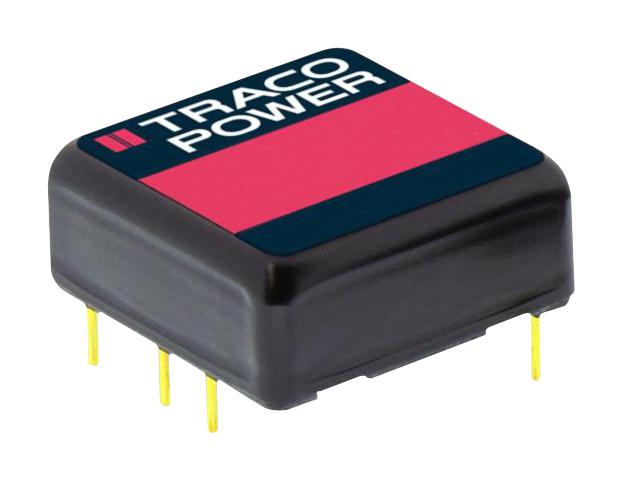

TRACO POWER THL154810WI DC/DC Converter
The THL 15WI Series is a compact, high-performance 15 Watt DC/DC converter designed for industrial, communication, and instrumentation applications. Encapsulated in a 1” x 1” x 0.4” metal package, it features an ultra-wide 4:1 input voltage range from 9-36V and 18-75V DC, delivering highly regulated, isolated outputs with efficiencies up to 91%. Operating temperature ranges from -40°C to +70°C without derating, with protection against overload, overvoltage, and short circuits. Internal EN 55032 class A filter, remote On/Off, and optional heatsink enhance its versatility and performance, making it ideal for various demanding environments.
TRACO POWER THL154810WI DC/DC Converter Specifications:
- Power Output: 15 Watt
- Input Voltage Range: 9-36V DC and 18-75V DC (ultra-wide 4:1 range)
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Maximum Output Current: 3400mA to 1250mA depending on model
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +70°C without derating
- Isolation Voltage: 1500 VDC input to output, 1800 VDC for 1 second
- Switching Frequency: 310–385 kHz
- Protection: Overload, overvoltage, short circuit
- Dimension: 1” x 1” x 0.4” (25.4 mm x 25.4 mm x 10.16 mm)
- Weight: 15g
- EMC Compliance: EN 55032 class A, EN 61000-4 series immunity
- Mechanical: Aluminum case, PCB mounted with gold-plated copper terminals
- Soldering Temperature: Max 260°C for 10 seconds
Buy the Buy Traco Power DC/DC Converter Part Number THL154810WI Online
Discover the high-performance Traco Power DC/DC Converter, ideal for demanding industrial and communication environments. Featuring a compact design and ultra-wide input range from 9 to 75V DC, it provides isolated, regulated outputs with efficiencies up to 91%. The converter is designed with internal filters, overload protection, and optional heatsink for extended temperature capabilities. Easy to install and highly reliable, it caters to diverse power conversion needs, ensuring optimal performance in critical applications worldwide. Purchase online for quick delivery and technical support.
Buy Traco Power THL154810WI now and ensure reliable power conversion with high efficiency and wide input range for industrial applications.
