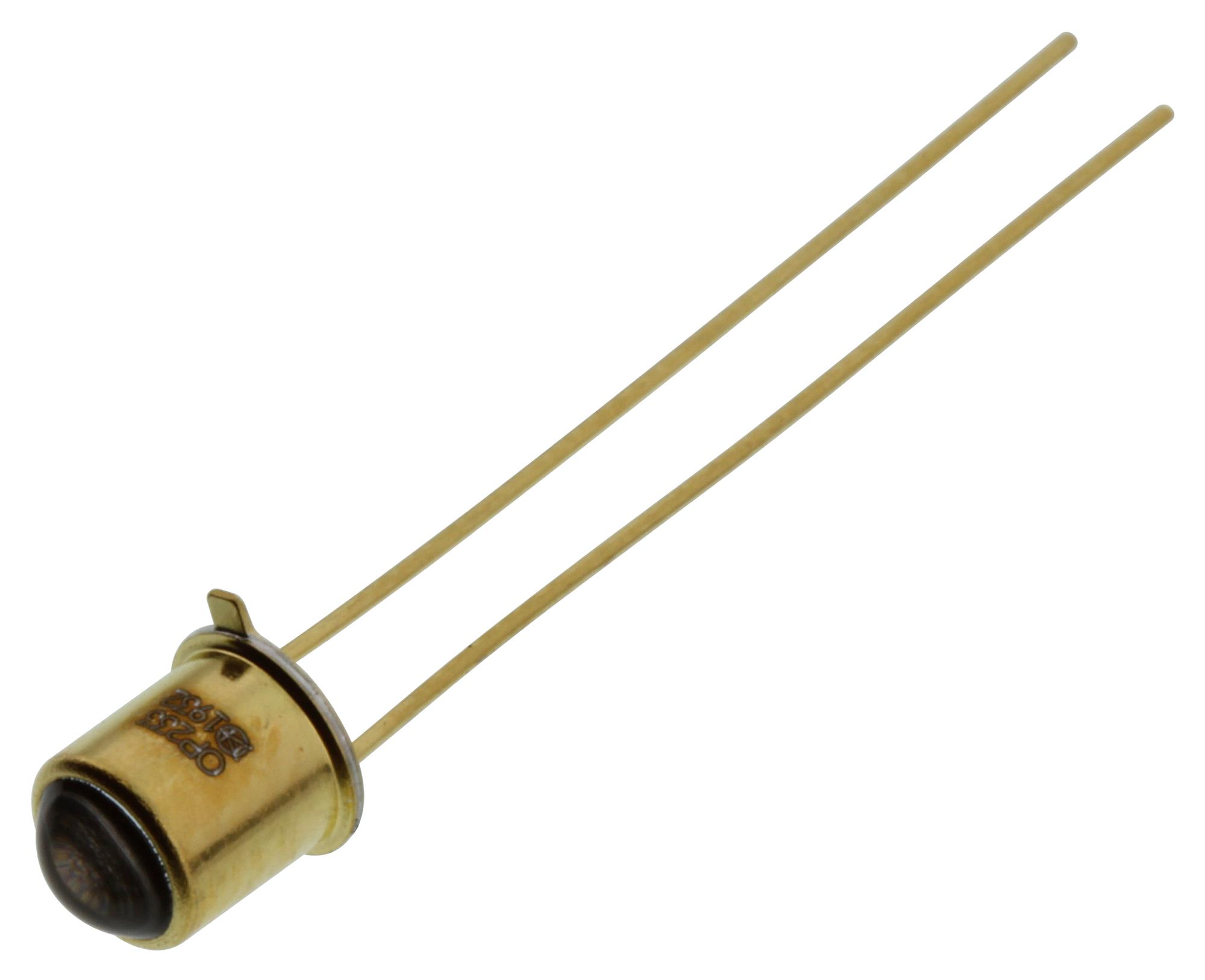

TT Electronics - Optek Technology OP233 Infrared LED
The OP233 is a Gallium Aluminium Arsenide infrared emitting diode housed in a hermetic metal package. It provides a higher radiated output than standard gallium arsenide at the same forward current. Featuring a lens with an 18° beam angle, it emits at 890 nm wavelength, matching silicon phototransistor spectral response. Ideal for non-contact sensors, automation, and safety applications, it offers both focused and non-focused light patterns, an extended temperature range, and compatibility with related OPTEK devices for reliable performance in industrial settings.
TT Electronics - Optek Technology OP233 Infrared LED Specifications:
- Wavelength: 890 nm
- Beam Angle: 18° (focused) or 50° (wide)
- Forward Voltage: approximately 2.0 V at 100 mA
- Peak Radiant Power: 3.0/NA mW
- Reverse Current: 100 pA at 2.0 V
- Operating Temperature Range: -65°C to +125°C
- Storage Temperature Range: -65°C to +150°C
- Maximum Continuous Forward Current: 100 mA
- Peak Forward Current: 10.0 A
- Power Dissipation: 200 mW
- Spectral Bandwidth: 80 nm
- Mounting: Hermetic TO-46 metal package
- Emission Wavelength: 890 nm
- Soldering Temperature: 260°C for 5 seconds
- Size: Approximately 5.08 mm
Buy the Hermetic Infrared Emitting Diode – Reliable IR LED for Industrial Applications
Purchase the OP233 infrared LED online for use in a wide range of industrial applications including non-contact sensing, automation, safety, and object detection. This high-output GaAlAs diode features a hermetic TO-46 package, an 890 nm wavelength, and an 18° beam angle, making it ideal for precise, reliable performance. Its extended temperature range and compatibility with related devices ensure durability and consistency in demanding environments. Order now to enhance your automation systems with this robust, high-quality IR emitter designed for long-term industrial use.
Get OP233 today—designed for precise sensing and long-lasting operation in industrial automation and safety systems.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OP233?
You can click on the BUY or RFQ button to purchase OP233 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OP233?
You can download the OP233 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OP233?
TT Electronics - Optek Technology
