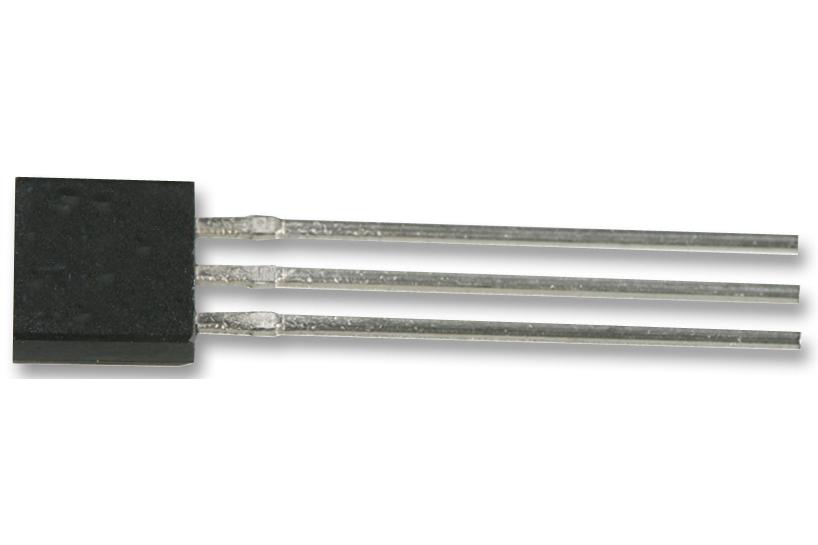

TT Electronics - Optek Technology OHS3040U Hallogic Unipolar Hall-Effect Sensor
The OHS3040U is a unipolar Hall-effect sensor designed for non-contact switching, suitable for industrial automation, machine safety, and end-of-travel applications. Operating over a wide voltage range of 4.5 to 24 V, it provides reliable magnetic field detection with stable performance in harsh environments up to +125°C. It features a small compact package, low power consumption, and fast response times, making it ideal for precise position sensing in industrial systems and motor control. Its robust design ensures durability in demanding applications, ensuring consistent operation across temperature and voltage variations.
TT Electronics - Optek Technology OHS3040U Hallogic Unipolar Hall-Effect Sensor Specifications:
- Supply Voltage Range: 4.5 V to 24 V
- Storage Temperature Range: -65°C to +160°C
- Operating Temperature Range: -20°C to +125°C
- Output Current: Up to 21 mA sink current
- Output Voltage: Saturation at 25 V, leakage current 10.0 μA at 24 V
- Magnetic Operate Point: 70-180 Gauss, typical 90 Gauss
- Magnetic Release Point: 0-290 Gauss, typical 65 Gauss
- Magnetic Hysteresis: 20-120 Gauss
- Output Rise and Fall Time: 0.21-1.00 μs
- Maximum Supply Voltage: 25 V
- Lead Soldering Temperature: 260°C for 5 seconds
- Detection Type: Unipolar, Non-contact Switching
- Application: Position sensing, machine automation, safety sensors, end-of-travel detection
Buy the Hallogic Series Ohm-Polar Magnetic Sensor: OHS3040U
Order the TT Electronics Hallogic OHS3040U today for precise, contactless magnetic sensing that ensures reliable operation in demanding industrial environments. This sensor is perfect for automation, motor control, and safety applications, operating across a wide voltage range of 4.5 to 24 volts with low power consumption and fast response times. Its robust design withstands high temperatures up to 125°C and has a compact form factor, making installation easy and dependable. Experience enhanced safety and efficiency with this high-quality, easy-to-integrate sensor available for online purchase.
Buy TT Electronics Hallogic OHS3040U magnetic sensor now and experience unmatched reliability and performance in industrial automation and safety applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OHS3040U?
You can click on the BUY or RFQ button to purchase OHS3040U from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OHS3040U?
You can download the OHS3040U datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OHS3040U?
TT Electronics - Optek Technology
