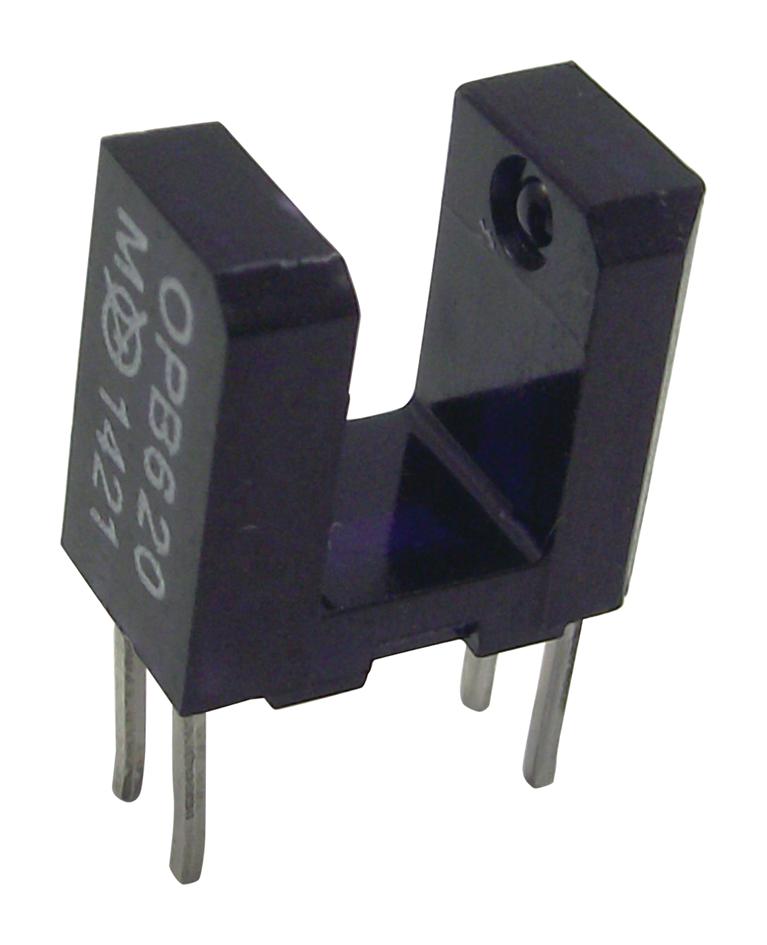

TT Electronics - Optek Technology OPB620 Optical Switch
The OPB620 slotted optical switch features an infrared emitting diode paired with an NPN silicon phototransistor, designed for high-speed and immune-to-background IR interference applications. It includes a transistor and a housing that minimizes ambient radiation sensitivity, with lead centers of 0.320 inches. Suitable for machine automation, end-of-travel detection, and safety sensors, this device offers a compact, PCB-mount design with enhanced signal-to-noise ratios, ideal for reliable non-contact switching in industrial environments.
TT Electronics - Optek Technology OPB620 Optical Switch Specifications:
- Storage and Operating Temperature Range: -40°C to +100°C
- Peak Forward Current: 100 mA
- Reverse DC Voltage: 60 V
- Collector-Emitter Breakdown Voltage: 24 V
- Dark Current - Output Phototransistor: 100 nA
- Forward Voltage - Output Photodiode: 1.0 V
- Maximum Lead Soldering Temperature: 260°C for 5 sec.
- Red LED (OPB620): Wavelength 890 nm, Aperture 0.150" / 0.240"
- Lead Centers: 0.320" (OPB620), 0.275" (OPB610, OPB611), 0.240" (OPB610)
- Housing Material: Polysulfone (visible light opaque, IR transmissive)
- Soldering Note: RMA flux recommended, avoid excessive force on leads
- Maximum Power Dissipation: 100 mW for photodiode, 260°C soldering temperature
Buy the TT Electronics Series OPB Switch: OPB620
Purchase your TT Electronics Series OPB620 optical sensor online today to enhance your automation projects with high-speed, reliable non-contact switching. Designed for industrial environments, this sensor offers excellent immunity to background IR radiation and features PCB mounting for easy integration. Perfect for end-of-travel detection, machine safety, and object sensing, the OPB620 provides consistent performance with minimal ambient interference. Order now and ensure your systems operate efficiently with top-quality opto-electronic components delivered directly to your workspace.
Order your TT Electronics Series OPB620 high-speed opto sensor today and experience dependable non-contact switching for industrial automation.
