TT Electronics - Optek Technology OVLFR3C7 High-brightness Red LED

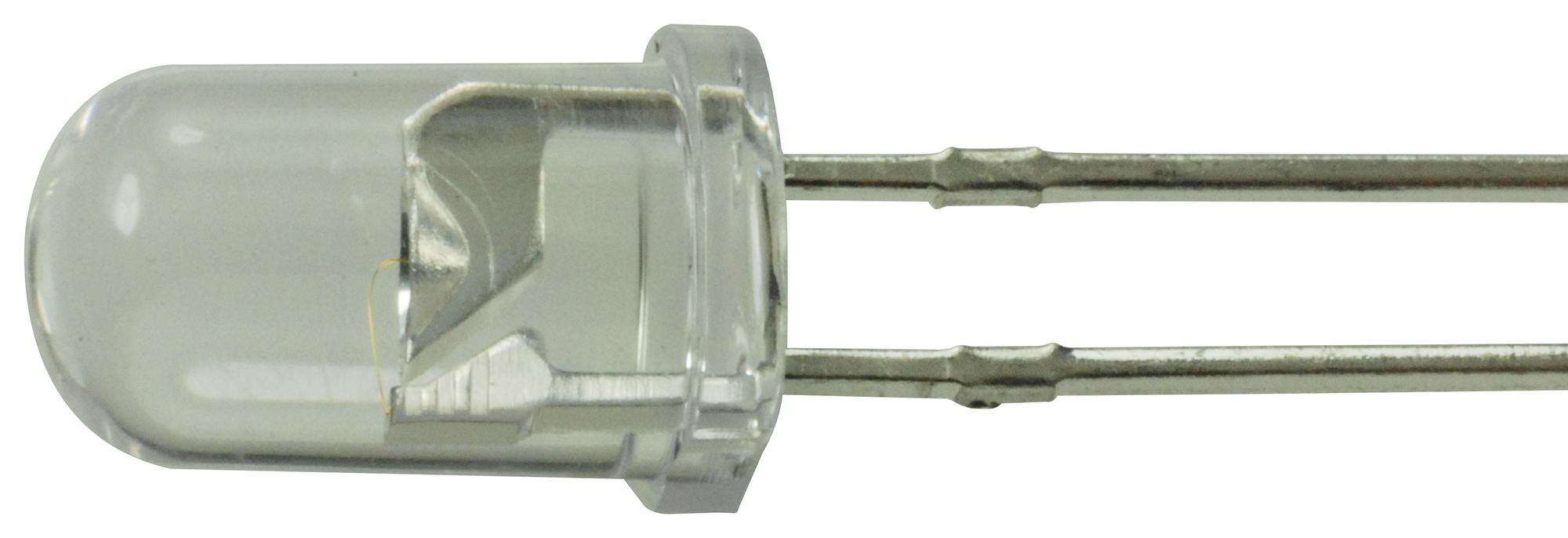

The OVLFR3C7 is a 5mm red high-brightness LED with AllnGaP construction and a water-clear lens. It offers a peak wavelength of 623nm and a 30° emission angle, ensuring a well-defined, uniform light pattern suitable for outdoor use. Its UV-resistant epoxy lens enhances durability in various environments, making it ideal for LED lighting, signaling, automotive lighting, and architectural applications. Designed for reliability, this LED features a water-clear lens and efficient emission for effective signal transmission and illumination, ensuring high visibility and performance in demanding conditions.
TT Electronics - Optek Technology OVLFR3C7 High-brightness Red LED Specifications:
- Lens Color: Water-clear
- Color: Red
- Peak Wavelength: 623 nm
- Beam Angle: 30°
- Luminous Intensity: 7,400 mcd (Typ)
- Forward Voltage: 2.0 ~ 2.4 V at 20mA
- Forward Current: 50 mA (Max)
- Reverse Voltage: 5V
- Storage Temperature Range: -40°C to +100°C
- Operating Temperature Range: -40°C to +100°C
- Soldering Temperature (2mm from epoxy base): 260°C for 5 sec
- Lead Soldering Temperature: 260°C for 10 sec
- Lead Material: Tin-plated iron alloy
- Package Quantity: 500 pcs/bag
- Reliability: Tested for lifetime, high temperature, and humidity endurance
Buy the TT Electronics Series OVLF Series LED: OVLFR3C7
Order the TT Electronics OVLFR3C7 now for high-performance outdoor LED lighting and signaling solutions. Featuring a durable water-clear lens, 30° beam angle, peak wavelength of 623nm, and reliable construction, this LED ensures optimal visibility and longevity in demanding environments. Perfect for automotive, architectural, and signaling applications, it offers excellent brightness, low power consumption, and easy integration into various systems. Purchase online today and enhance your lighting projects with consistent, high-quality illumination.
Buy TT Electronics OVLFR3C7 now and experience unmatched reliability and performance in outdoor and signal lighting applications.
