TT Electronics - Optek Technology OP804SL NPN Phototransistor
The NPN phototransistor series includes hermetically sealed TO-18 packages designed for high power dissipation and operation in hostile environments. Devices like OP800SL, OP800WSL, OP830SL, and OP830WSL feature narrow or wide receiving angles, offering excellent on-axis coupling and even area reception. These devices are mechanically and spectrally matched to specific LEDs, tested with infrared sources at 2870°K, and suitable for space-limited, high-power, and hostile environment applications. They provide reliable optoelectronic performance with various sensitivity ranges and enhanced temperature tolerance.
TT Electronics - Optek Technology OP804SL NPN Phototransistor Specifications:
- Package Type: TO-18 hermetically sealed
- Maximum Storage Temperature: -65°C to +150°C
- Operating Temperature Range: -65°C to +125°C
- Collector-Base Voltage: 30V (OP800SL), 15V (OP830SL)
- Collector-Emitter Voltage: 30V (OP800 series), 15V (OP830 series)
- Emitter-Base Voltage: 5V (OP800 series)
- Emitter-Collector Voltage: 5V
- Continuous Collector Current: 50 mA
- Power Dissipation: 250 mW
- Collector Dark Current: Max 100 nA (OP800), Max 1 nA (OP830)
- Breakdown Voltages: Collector-Base 30V (OP800), 15V (OP830); Emitter-Base 5V
- Rise Time: 7 μs; Fall Time: 7 μs
- Soldering Temperature: 260°C for 5 seconds
- Testing at 2870°K infrared source
- Sensitivity Levels: 1-5 (OP800SL), 1-2 (OP800WSL), tested with 2870°K light source

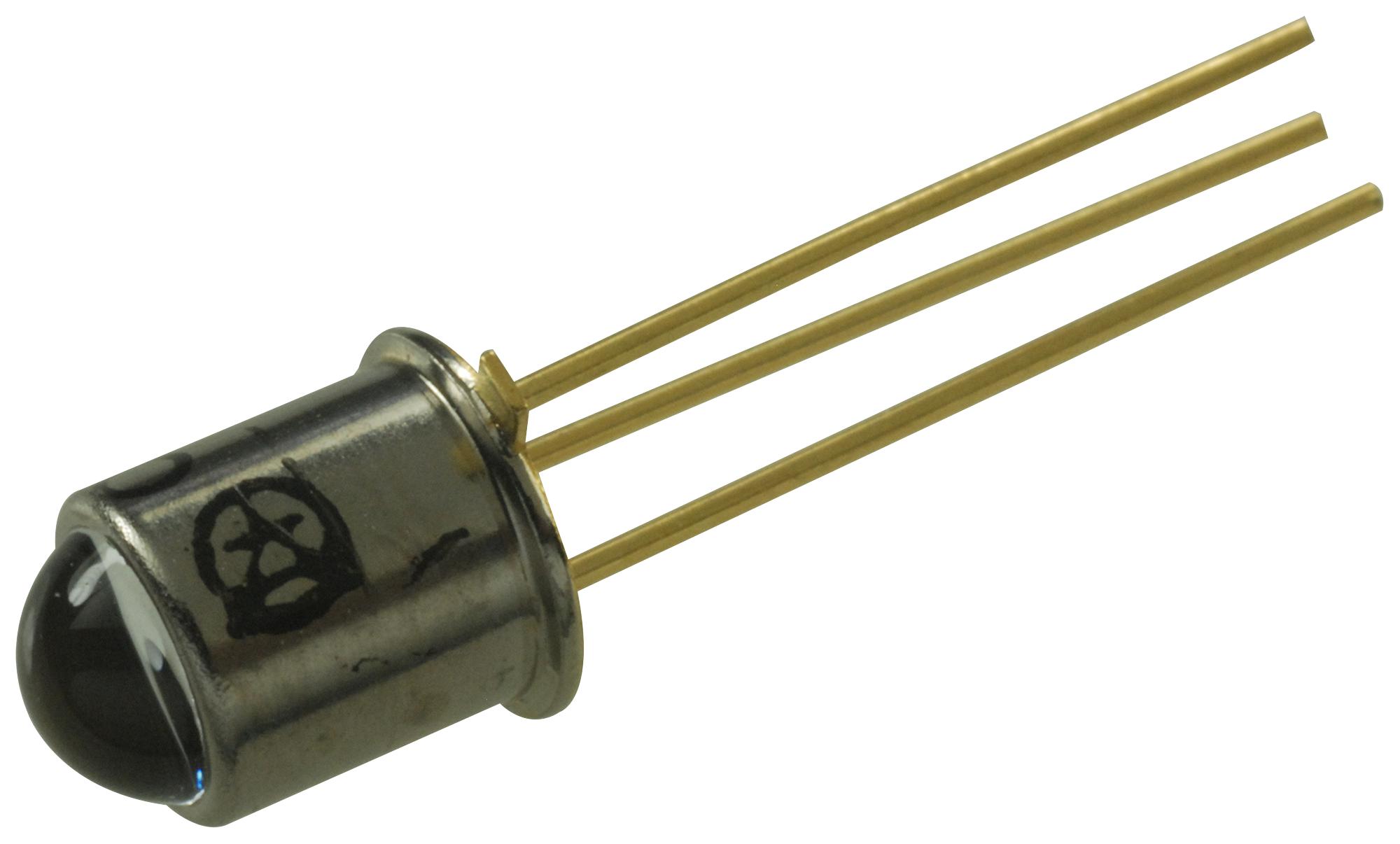

Buy the OPTEK Series OP800SL: NPN Phototransistor
Choose the OPTEK OP800SL series for a high-reliability NPN phototransistor in a hermetic TO-18 package. Designed for space-limited, high-power applications, it offers excellent on-axis coupling and broad environmental tolerance. Tested with infrared sources at 2870°K, this device ensures consistent performance across various sensitivity levels. Its robust construction and sealed design make it ideal for use in hostile environments, space applications, and demanding industrial settings. Purchase online today to ensure optimal optoelectronic performance.
Buy OPTEK OP800SL now and experience unmatched reliability and high power performance in hostile environments.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OP804SL?
You can click on the BUY or RFQ button to purchase OP804SL from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OP804SL?
You can download the OP804SL datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OP804SL?
TT Electronics - Optek Technology
