TT Electronics - Optek Technology OPB9001B Reflective Optical Sensor
The OPB9001B is a compact reflective optical sensor designed for non-contact presence and position detection in various automation applications. Operating from 4.5V to 24V, it features an NPN open collector output, a sensing distance range of 2.5mm to 50mm, and an integrated green calibration LED that flashes during calibration. It offers high immunity to ambient light (up to 25 kIx), enhanced ESD protection up to 8kV, and is CE and UL certified for reliable industrial performance. Its small footprint makes it ideal for tight spaces in manufacturing, material handling, and high-speed paper detection systems.
TT Electronics - Optek Technology OPB9001B Reflective Optical Sensor Specifications:
- Supply Voltage: 4.5V to 30V for OPB9001A/AC, 4.5V to 24V for OPB9001B, 3.3V to 5.5V for OPB9001C
- Sensing Distance: 2.5 mm to 50 mm
- Output Type: NPN open collector
- Output Voltage (Low): 0.4 V at Vin=24V, target at 6mm with 90% diffuse white surface
- Output Voltage (High): 0.95*Vin, target at 6mm with 90% surface
- Response Time: 6 ms
- Ambient Light Rejection: 25 kIx+
- ESD Immunity: Up to 8 kV contact discharge
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 18 mm x 12 mm x 5 mm
- Electrical Consumption: Approx. 16 mA
- Power Indicators: Red LED, output indicator: orange LED, calibration indicator: green LED flashing
- Certifications: CE and UL approved
- Maximum Load Current: 40 mA

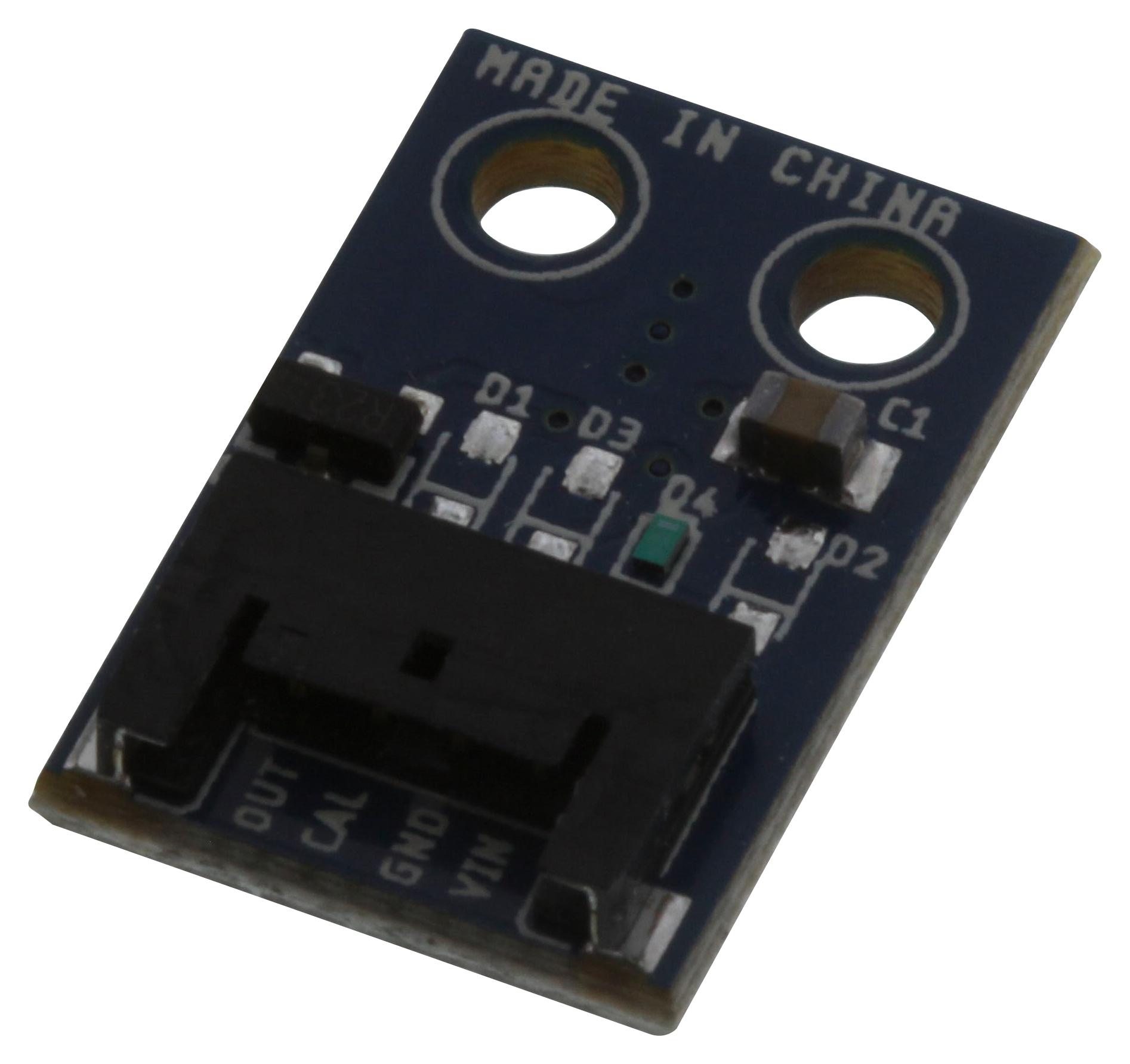

Buy the Buy TT Electronics OPB9001B Reflective Optical Sensor Part Number OPB9001B Online
Experience the reliability and precision of the TT Electronics OPB9001B reflective optical sensor. Designed for seamless integration into automation, it features an adjustable detection range from 2.5mm to 50mm, high ESD immunity up to 8kV, and CE UL certification for industrial-grade performance. Its compact size fits into tight spaces, making it ideal for manufacturing, material handling, and high-speed paper detection applications. Calibrate quickly with a single command, ensuring rapid deployment and consistent operation in various environments.
Get TT Electronics OPB9001B today—built for precise detection, long-lasting durability, and easy installation in industrial automation.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB9001B?
You can click on the BUY or RFQ button to purchase OPB9001B from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB9001B?
You can download the OPB9001B datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB9001B?
TT Electronics - Optek Technology
