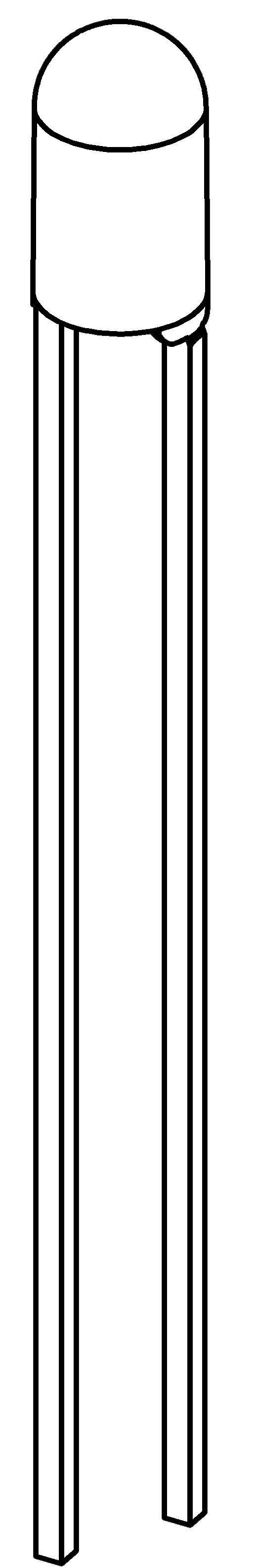

TT Electronics - Optek Technology OVLBY4C7 Round Through-Hole LED Lamp
The OVLBY4C7 is a round through-hole UV-resistant LED lamp featuring a water-clear lens made of AllnGaP. This high-brightness LED delivers a well-defined, even emission pattern and is packaged in a clear plastic housing. Its UV-resistant epoxy lens makes it suitable for outdoor applications. The device operates at 5V reverse voltage, dissipates 80mW of power, and can withstand up to 125°C junction temperature. It is ideal for signaling, lighting, and automotive uses.
TT Electronics - Optek Technology OVLBY4C7 Round Through-Hole LED Lamp Specifications:
- Storage Temperature Range: -40°C to +100°C
- Operating Temperature Range: -40°C to +100°C
- Reverse Voltage: 5 V Max
- Continuous Forward Current: Red, Yellow 50 mA; Blue, Green 25 mA
- Peak Forward Current: Red, Yellow 100 mA; Blue, Green 100 mA
- Power Dissipation: Red, Yellow 120 mW; Blue, Green 100 mW
- Junction Temperature: 125°C
- Lens Material: UV-resistant epoxy, Water-clear
- Package Type: Round through-hole, 3 mm diameter
- Optical Wavelength: Red (620-630 nm), Yellow (585-595 nm), Green (520-530 nm), Blue (460-470 nm)
- Luminous Intensity: Red & Yellow (2225–3700 mcd), Green (4360–8400 mcd), Blue (1135–1800 mcd)
- Soldering Temperature: 260°C for 3 seconds
- Package Quantity: 500 pcs per bulk bag with desiccant
Buy the Buy TT Electronics OVLBY4C7 LED Part Number OVLBY4C7 Online
Order the TT Electronics OVLBY4C7 LED online today to enhance your signaling, signage, automotive, and outdoor lighting projects. This high-brightness, UV-resistant LED with a clear lens is engineered for outdoor durability and precise emission patterns. With broad compatibility, robust construction, and excellent electrical characteristics, it ensures reliable operation in various environments. Purchase now for quick delivery and experience unmatched performance and longevity in your lighting solutions. Perfect for professional applications requiring dependable, high-intensity illumination in compact packages.
Get TT Electronics OVLBY4C7 LED today—designed for reliable signaling, automotive lighting, and outdoor applications with long-lasting durability.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVLBY4C7?
You can click on the BUY or RFQ button to purchase OVLBY4C7 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVLBY4C7?
You can download the OVLBY4C7 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVLBY4C7?
TT Electronics - Optek Technology
