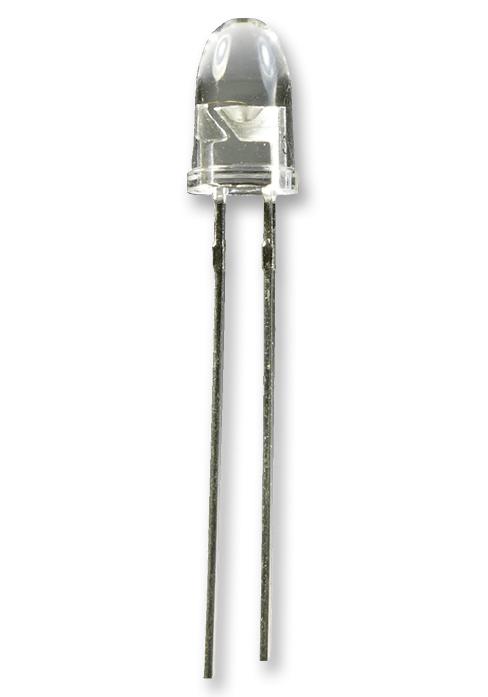

TT Electronics - Optek Technology OVLGS0C8B9 High-Intensity Plastic LED
The high-intensity LED in plastic T-1% package from the OVLGxOCyB9 series delivers high brightness with a narrow beam angle, making it ideal for indoor/outdoor applications, signage, and variable message boards. It features an integral molded lens, UV resistant epoxy, and emits vivid colors including blue, blue-green, red, and yellow with luminous intensities up to 23,000 mcd. Operating within -40°C to +100°C, it supports drive currents up to 50mA. Designed for durability, it meets strict reliability standards and offers easy integration into various electronic and lighting projects.
TT Electronics - Optek Technology OVLGS0C8B9 High-Intensity Plastic LED Specifications:
- Storage Temperature Range: -40°C to +100°C
- Operating Temperature Range: -40°C to +100°C
- Reverse Voltage: 5V
- Continuous Forward Current: 50mA for Red and Yellow, 25mA for Blue and Blue-Green
- Peak Forward Current: 100mA at 10% duty cycle
- Power Dissipation: 120mW (Red & Yellow), 100mW (Blue & Blue-Green)
- Luminous Intensity: Up to 23,000 mcd, depending on color
- Wavelength: Red 620-630 nm, Yellow 585-595 nm, Blue 430-470 nm, Blue-Green 499-505 nm
- Forward Voltage: 2.0-4.0V depending on color
- Beam Angle: Approximately 25 degrees
- Lead Soldering Temperature: 260°C for 5 seconds
- Package: 500 pcs per anti-static bag with desiccant
Buy the Buy TT Electronics OVLGxOCyB9 Series LED Part Number OVLGS0C8B9 Online
Order TT Electronics OVLGxOCyB9 Series high-intensity plastic LEDs online today. These durable, high-brightness LEDs feature a narrow beam angle, UV resistant epoxy, and are perfect for signage, message boards, and outdoor lighting solutions. With operating temperatures from -40°C to +100°C and support for drive currents up to 50mA, they ensure reliable performance in demanding environments. Packaged in anti-static bags, they are ideal for industrial, commercial, and engineering applications requiring vivid color emission and steady light output.
Get TT Electronics OVLGxOCyB9 Series LED today—built for high brightness and long-lasting durability in signage and indicator applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVLGS0C8B9?
You can click on the BUY or RFQ button to purchase OVLGS0C8B9 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVLGS0C8B9?
You can download the OVLGS0C8B9 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVLGS0C8B9?
TT Electronics - Optek Technology
