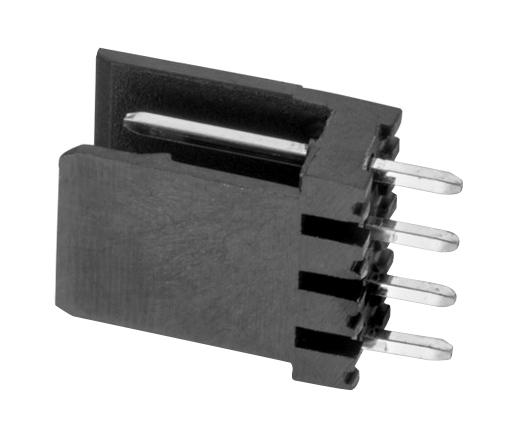

WURTH ELEKTRONIK 66101011622 Intercom Connector
This is a 2.54 mm intercom single row male vertical connector, designed for general electronic applications. Constructed with a PAG insulator and phosphor bronze metal, it features a tin plating for corrosion resistance. The connector supports a maximum current of 3A and a working voltage of 50 VAC, with an insulation resistance above 1000 MΩ and contact resistance not exceeding 20 mΩ. Its robust design ensures reliability with up to 25 mating cycles, suitable for PCB mounting, and adheres to RoHS and lead-free standards, making it ideal for diverse electronic systems requiring dependable connections.
WURTH ELEKTRONIK 66101011622 Intercom Connector Specifications:
- Insulator Material: PAG
- Metal Material: Phosphor Bronze
- Plating: Tin
- Flammability Rating: UL94VO
- Color: Black
- Current Rating: 3A
- Working Voltage: 50 VAC
- Max Working Voltage (PCB): 500 VAC/min
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ max
- Operates in temperature range: -40°C to +125°C
- Mating Cycles: 25
- RoHS and Lead-Free Compliant
- Packaging: TL Box
- Soldering Method: JEDEC Lead-Free Wave Soldering
- Size and dimensions: 0.62x0.62 mm pitch, 2.54 mm pin spacing, general tolerances
- Application: General electronics, PCB connectors, modular systems
Buy the Buy Wirth Elektronik Intercom Male Connector Part Number 66101011622 Online
Purchase the Wirth Elektronik Intercom Connector Part Number 66101011622 online today and enjoy a high-quality, reliable component for your electronic projects. Featuring a robust design, corrosion-resistant tin plating, and a temperature range of -40°C to +125°C, this connector is suitable for demanding applications. Its 25 mating cycles and RoHS compliance ensure durability and environmental safety. Perfect for PCB applications, it supports a maximum current of 3A and a working voltage of 50 VAC. Easy to install with JEDEC-approved soldering, it guarantees excellent electrical performance and long-lasting service life, making it an essential choice for professional electronics development.
Get Wirth Elektronik 66101011622 today—designed for reliable connections, high durability, and high safety standards in electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 66101011622?
You can click on the BUY or RFQ button to purchase 66101011622 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 66101011622?
You can download the 66101011622 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 66101011622?
WURTH ELEKTRONIK
