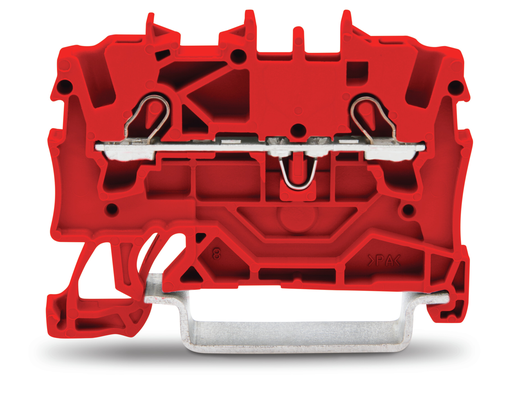

WAGO 20011203 2-conductor Through Terminal Block
The WAGO 2001-1203 is a 2-conductor through terminal block specifically designed for use in Ex e II environments. It utilizes WAGO’s Pushin CAGE CLAMP® connection technology, which simplifies wiring and ensures a reliable connection. The terminal block is suitable for mounting on DIN rails (35 x 15 and 35 x 7.5) and is marked with both center and side marking options for clear identification. It is ideal for applications requiring robust and safe electrical connections in hazardous areas.
WAGO 20011203 2-conductor Through Terminal Block Specifications:
- Nominal voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 18 A
- Rated current 2: 24 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 17 A
- Rated current (Ex e II) with jumper: 16 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1.5 mm²
- Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Width: 4.2 mm / 0.165 inch
- Height: 48.5 mm / 1.909 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: red
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.074 MJ
- Weight: 3.8 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454537364
- Customs tariff number: 85369010000
