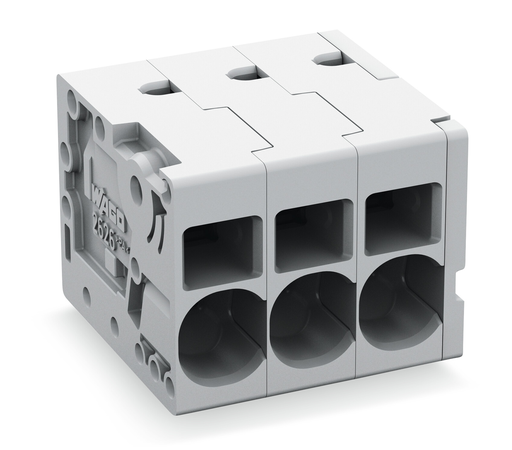

WAGO 26261103020000 3-pole PCB Terminal Block
The WAGO 2626-1103/020-000 is a robust 3-pole PCB terminal block designed for reliable electrical connections in a variety of industrial applications. Utilizing the innovative Push-in CAGE CLAMP® connection technology, it enables quick and secure termination of both solid and ferruled conductors. The 7.5mm pin spacing facilitates efficient layout design, while the compact dimensions (width 24.3mm, height 23.6mm) make it suitable for space-constrained environments. This terminal block is ideal for panel feedthrough applications and offers convenient parallel and perpendicular conductor entry testing. It is UL, CSA, and DEKRA certified, ensuring compliance with industry standards.
WAGO 26261103020000 3-pole PCB Terminal Block Specifications:
- Nominal Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Nominal Voltage (III/2): 1000 V
- Rated Surge Voltage (III/2): 8 kV
- Nominal Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 8 kV
- Rated Current: 48 A
- Rated Voltage UL (Use Group B): 600 V
- Rated Current UL (Use Group B): 38 A
- Rated Voltage UL (Use Group C): 600 V
- Rated Current UL (Use Group C): 38 A
- Rated Voltage CSA (Use Group B): 600 V
- Rated Current CSA (Use Group B): 38 A
- Rated Voltage CSA (Use Group C): 600 V
- Rated Current CSA (Use Group C): 38 A
- Connection Technology: Push-in CAGE CLAMP®
- Solid Conductor Range: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-Stranded Conductor Range: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-Stranded Conductor w/ Insulated Ferrule Range: 0.25 … 6 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule Range: 0.25 … 6 mm²
- Fine-Stranded Conductor w/ Twin Ferrule Range: 0.25 … 2.5 mm²
- Strip Length: 13 … 15 mm / 0.51 … 0.59 inch
- Pin Spacing: 7.5 mm / 0.295 inch
- Width: 24.3 mm / 0.957 inch
- Height: 23.6 mm / 0.929 inch
- Height from Surface: 19.6 mm / 0.772 inch
- Depth: 24.2 mm / 0.953 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 1.5 x 1 mm
- Drilled Hole Diameter: 2 mm (+0.1)
- Mounting Type: Feed-through mounting
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class (UL94): V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E Cu)
- Contact Plating: tin-plated
- Weight: 12.1 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4055143587099
- Customs Tariff Number: 85369010000
