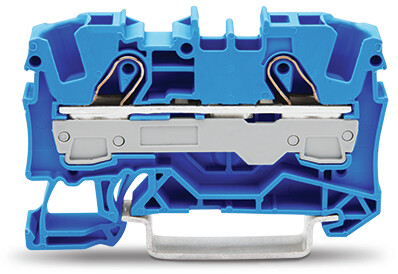

WAGO 20061204 2-Conductor Terminal Block
The WAGO 2006-1204 is a robust and reliable 2-conductor through terminal block specifically engineered for use in hazardous environments, meeting Ex e II and Ex i application requirements. Utilizing WAGO’s Push-in CAGE CLAMP® connection technology, it ensures secure and efficient conductor termination. The terminal block is designed for mounting on DIN rails (35 x 15 and 35 x 7.5) and features side and center marking for easy identification. Its construction with polyamide (PA66) insulation and a fire load of 0.154 MJ makes it suitable for a wide range of industrial applications where safety and reliability are paramount.
WAGO 20061204 2-Conductor Terminal Block Specifications:
- Rated voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 41 A
- Rated current 2: 57 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 50 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 50 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 38 A
- Rated current (Ex e II) with jumper: 33 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 6 mm²
- Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Solid conductor; push-in termination: 2.5 … 10 mm² / 14 … 8 AWG
- Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
- Strip length: 13 … 15 mm / 0.51 … 0.59 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 7.5 mm / 0.295 inch
- Height: 57.5 mm / 2.264 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Material: Polyamide (PA66)
- Color: blue
Buy the 2006-1204 WAGO 2-Conductor Terminal Block | myMectronic
Purchase the WAGO 2006-1204 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20061204?
You can click on the BUY or RFQ button to purchase 20061204 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20061204?
You can download the 20061204 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20061204?
WAGO
