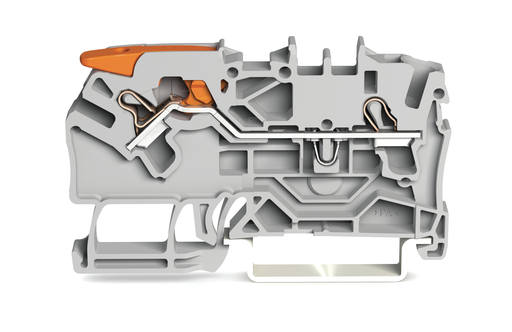

WAGO 21021201 Electrical Terminal Block
This high-quality 2-conductor through terminal block features Push-in CAGE CLAMP® technology for quick, secure connections. It accommodates 2.5 mm² conductors, includes test ports, and supports DIN-rail mounting in sizes 35 x 15 mm and 7.5 mm. Suitable for industrial automation and wiring applications, it offers reliable electrical performance with a rated voltage of 800 V and current of 24A. Its gray polyamide housing and side/center marking ensure ease of installation and identification, making it ideal for modern electrical installations.
WAGO 21021201 Electrical Terminal Block Specifications:
- Width: 5.2 mm / 0.205 inch
- Height: 61.5 mm / 2.42 inch
- Depth from DIN-rail: 32.9 mm / 1.30 inch
- Material: Polyamide (PA66)
- Color: Gray
- Maximum conductor cross-section: 2.5 mm² / 14-12 AWG
- Solid conductor: 0.75 - 4 mm² / 18-12 AWG
- Fine-stranded conductor: 0.25 - 4 mm² / 22-12 AWG
- Rated voltage (IEC): 800 V
- Rated current: 24 A
- Number of connection points: 2
- Marking: Side and center marking
- Mounting: DIN-35 rail, horizontal type
- Weight: 7 g
Buy the WAGO Series 2102-1201 Terminal Block: 2-Conductor Push-In CAGE CLAMP
Enhance your wiring setup with the reliable WAGO Series 2102-1201 2-conductor terminal block featuring Push-in CAGE CLAMP® technology. Designed for DIN-rail mounting, it supports conductors up to 2.5 mm² for efficient, tool-free connection. Equipped with test ports and clear markings for easy installation, its durable gray polyamide housing ensures long-lasting performance. Perfect for industrial automation, building wiring, or control panel applications, this terminal block guarantees quick, secure connections with high voltage and current ratings for safety and efficiency.
Order your WAGO Series 2102-1201 terminal block today and give your electrical projects the dependable quality they deserve with quick, secure connections.
Frequently Asked Questions
Where can I buy WAGO 21021201?
You can click on the BUY or RFQ button to purchase 21021201 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 21021201?
You can download the 21021201 datasheet or visit the WAGO website for support.
Who is the manufacturer of 21021201?
WAGO
