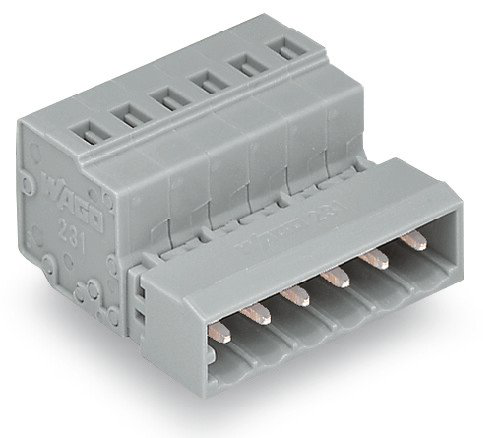

WAGO 231603 3-pole Male Connector
The WAGO 231-603 is a versatile 3-pole male connector designed for a wide range of industrial applications. Utilizing WAGO’s innovative CAGE CLAMP technology, it enables easy and secure cable pre-assembly and on-unit wiring, accommodating both vertical and horizontal actuation. This connector is suitable for wire-to-wire and board-to-wire connections and is available with optional snap-in mounting feet or flanges for flexible panel integration. It is designed to meet stringent safety standards and offers reliable performance in demanding environments. Its robust construction and ease of use make it a valuable component in various electrical systems.
WAGO 231603 3-pole Male Connector Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 3
- Total number of connection points: 3
- Total number of potentials: 3
- Number of connection types: 1
- Number of levels: 1
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 5 mm / 0.197 inch
- Width: 18.2 mm / 0.717 inch
- Height: 14.3 mm / 0.563 inch
- Depth: 27.5 mm / 1.083 inch
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for conductors
- Mismating protection: No
- Color: gray
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.089 MJ
- Weight: 4.8 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918256605
- Customs Tariff No.: 85366990990
