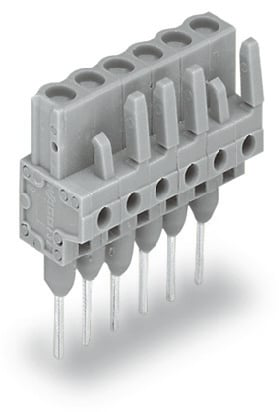

WAGO 232135005000 5-pole Female Connector
The WAGO 232-135/005-000 is a female connector specifically engineered for rail-mount terminal blocks utilizing the CAGE CLAMP connection system. It provides a pluggable, live output with touch-proof contacts when unmated, enhancing safety in industrial environments. This connector is suitable for applications requiring reliable and secure connections in electrical distribution systems and control panels. It is designed to be used with 280 Series Rail-Mount Terminal Blocks.
WAGO 232135005000 5-pole Female Connector Specifications:
- Pin Spacing: 5 mm
- Number of Poles: 5
- Total Number of Potentials: 5
- Rated Voltage (III / 3): 320 V
- Rated Impulse Voltage (III / 3): 4 kV
- Rated Voltage (III / 2): 320 V
- Rated Impulse Voltage (III / 2): 4 kV
- Rated Voltage (II / 2): 630 V
- Rated Impulse Voltage (II / 2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage per UL 1977 (factory wiring only): 600 V
- Rated Current per UL 1977 (factory wiring only): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Number of Connection Types: 1
- Number of Levels: 1
- Width: 26.5 mm
- Height: 32.75 mm
- Height from the Surface: 18.25 mm
- Depth: 11.6 mm
- Contact Type: Female connector/socket
- Connector Connection Type: for front-entry wiring terminal block
- Mismating Protection: No
- Steckrichtung zur Reihenklemme: 90 °
- Color: gray
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Contact Material: Copper alloy
- Contact Plating: tin-plated
- Fire Load: 0.095 MJ
- Weight: 5.3 g
- Limit Temperature Range: -60 … +85 °C
- Product Group: 3 (Multi Conn. System)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918569576
- Customs Tariff No.: 85366990990
