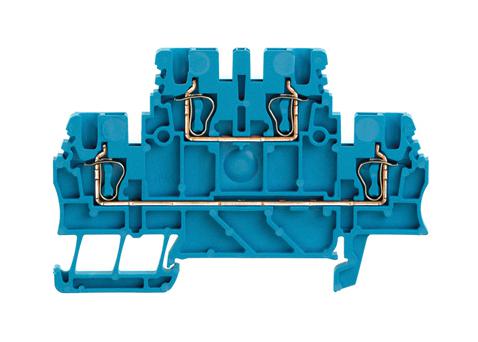

WEIDMULLER 1791110000 Double-tier industrial connector
The ZDK 1.5 BL is a double-tier terminal designed with tension clamp technology, providing a flexible and universal contact system suitable for various conductor types. It features a compact 3.5mm width, a height of 75.5mm, and a depth of 49.5mm, including DIN rail mounting. Constructed with UL 94 V-0 flame-rated blue Wemid material, it supports a maximum wire cross-section of 1.5mm² and 16 AWG, with a rated voltage of 500V and a current of 17.5A. The terminal offers easy snap-on installation, dual connection levels, and complies with IEC and CSA standards, making it ideal for industrial control applications.
WEIDMULLER 1791110000 Double-tier industrial connector Specifications:
- Width: 3.5mm (0.138 inch)
- Height: 75.5mm (2.972 inch)
- Depth: 49.5mm (1.949 inch)
- Material: Wemid, Blue, UL 94 V-0
- Mounting: Snap-on, TS 35 rail
- Connection: Tension-clamp, dual level, 2 clamping points per level
- Rated Voltage: 500V
- Rated Current: 17.5A
- Wire Cross Section: Max 16 AWG, Min 28 AWG
- Clamping Range: 0.05mm to 1.5mm²
- Operating Temp: -50°C to 120°C
- Storage Temp: -25°C to 55°C
- CSA Certification: 10A, 600V
- Standards: IEC 60947-7-1, IEC 60947-7-x
- UL Certification: E60693, Max 16 AWG
Buy the Weidmueller Series ZDK 1.5 BL: Tension Clamp Terminal
Shop online for the Weidmueller ZDK 1.5 BL double-tier tension clamp terminal, designed for reliable conductor connections in industrial control systems. Featuring a compact 3.5mm width, easy snap-on mounting, and support for wire sizes up to 16 AWG, this high-quality terminal ensures secure wiring with flexible dual-level contacts. Suitable for IEC and CSA standards, it withstands temperatures from -50°C to 120°C and provides durable performance in demanding environments. Easy to install and compliant with safety regulations, making it an excellent choice for engineers and electricians.
Buy Weidmueller ZDK 1.5 BL now and experience unmatched reliability and performance with versatile tension clamp technology suitable for industrial wiring.
