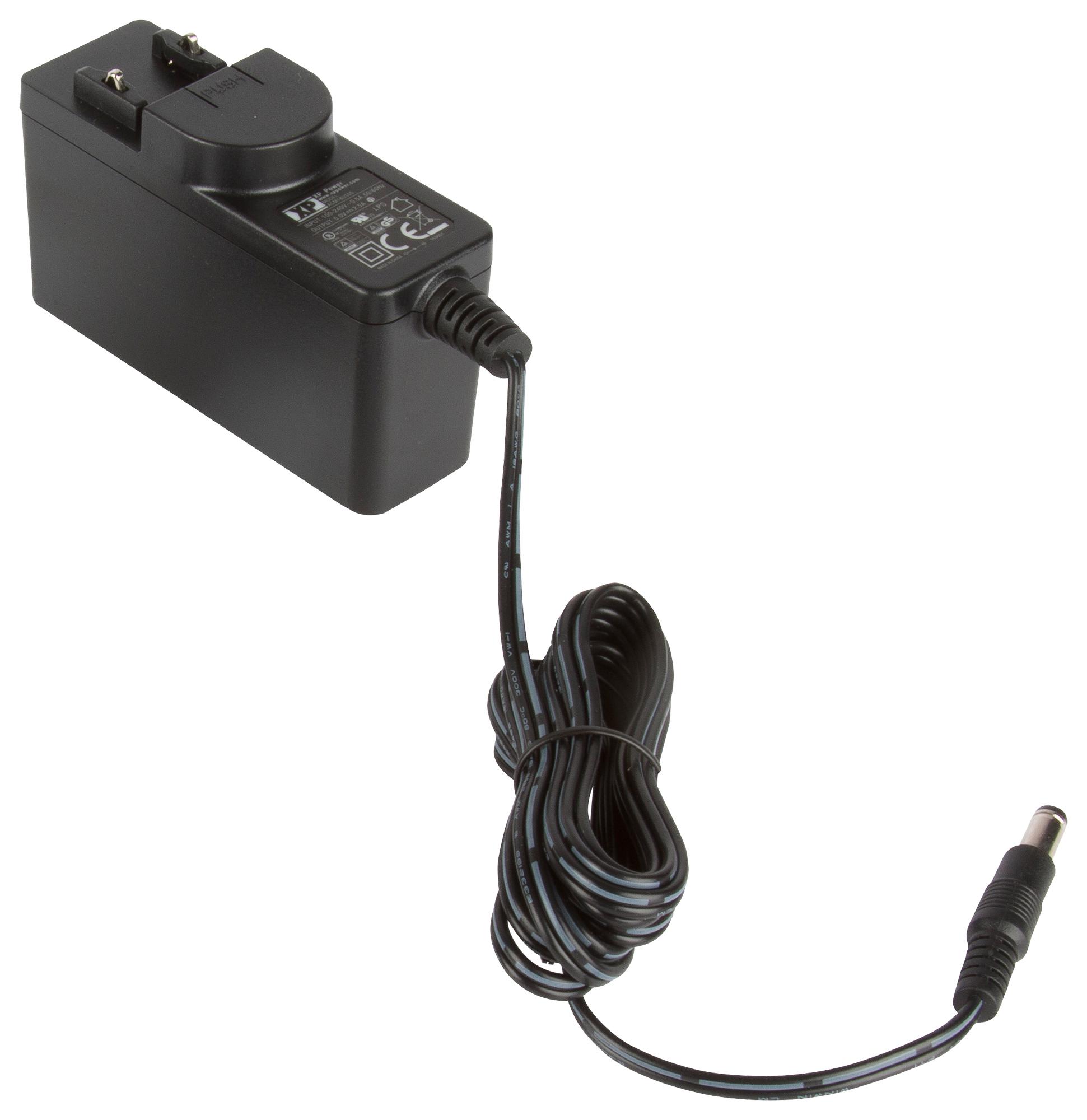

XP POWER ACM18US09 Power Supply
The ACM18 series wall plug adaptors from XP Power are compact, energy-efficient power supplies rated at 18W, with output voltages from 5V to 24V suitable for industrial and medical applications. Compliant with energy efficiency Level VI standards, these adaptors feature a rugged design with interchangeable mains connectors, including options for white versions. They offer high active efficiency of up to 87.5%, low no-load power consumption, and are certified for medical, ITE, and safety standards. Dimensions measure 3.46 x 1.18 x 1.95 inches, ensuring reliable, versatile operation in demanding environments.
XP POWER ACM18US09 Power Supply Specifications:
- Power Output: 18W
- Output Voltages: 5V, 9V, 12V, 15V, 18V, 24V
- Output Current: 2500 mA, 2000 mA, 1500 mA, 1250 mA, 1000 mA, 750 mA
- Efficiency: up to 87.5%
- Energy Efficiency Level: VI
- Isolation: 4000 VAC input to output
- Dimensions: 3.46 x 1.18 x 1.95 inches (88.0 x 30.0 x 49.5 mm)
- Certification: UL, EN, CSA, CE, UKCA, Medical and ITE Approvals
- Mains Connector Options: UK, US, AU, CN, EU versions available
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +85°C
- Switching Frequency: 20-70 kHz
- Protection: Overload, short circuit, overvoltage, overtemperature
- Warranty: 3 years
Buy the XP Power Series ACM: 18W Power Supply ACM18US09
Order the XP Power ACM18US09 power supply online today to enjoy high efficiency of up to 87.5%, reliable medical and industrial certification, and versatile output options from 5V to 24V. This compact 18W power adapter features interchangeable mains connectors, low no-load power consumption, and robust construction, making it ideal for demanding applications. With a dimension of only 3.46 x 1.18 x 1.95 inches, it offers excellent performance, safety compliance, and a 3-year warranty, ensuring dependable operation wherever you need a high-quality power source.
Get XP Power ACM18US09 today—built for precision, energy efficiency, and long-lasting durability in industrial and medical environments.
Frequently Asked Questions
Where can I buy XP POWER ACM18US09?
You can click on the BUY or RFQ button to purchase ACM18US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM18US09?
You can download the ACM18US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM18US09?
XP POWER
