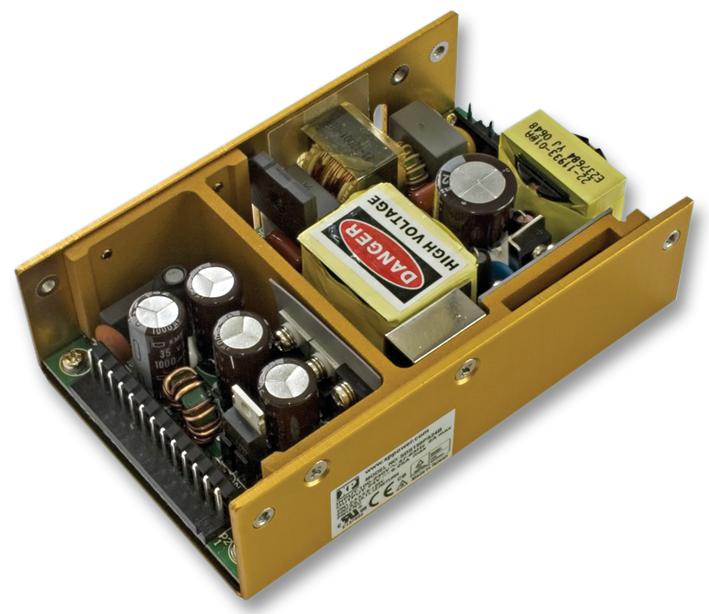

XP POWER SDS150PS24B Industrial Power Supply
The SDS150PS24B is a high-efficiency power supply designed for industrial automation and control applications. It features a rugged open frame construction, compact U-channel mount, and optional low temperature operation. Rated at 150 W with a 24 V output, it provides stable voltage regulation, high power density, and comprehensive EMC compliance. The unit supports a wide input voltage range of 90-264 VAC and offers advanced protections including overload, overvoltage, and short circuit safeguards. Ideal for reliable, long-lasting operation in diverse environments, it ensures consistent power delivery for critical systems.
XP POWER SDS150PS24B Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 1.7/1.0 A at 115/230 VAC
- Inrush Current: 20/51 A at 115/230 VAC
- Power Factor: >0.9
- Earth Leakage Current: 0.75 mA at 230 VAC
- Output Voltage: 24V
- Output Voltage Trim: Not adjustable
- Initial Set Accuracy: ±1%
- Efficiency: approx. 88%
- Isolation: 3000 VAC input to output
- Dimensions: Approximately 5.00 x 3.00 x 1.44 inches (127.0 x 76.2 x 36.6 mm)
- Operating Temperature: -40°C to +70°C (low temp option available)
- Cooling: Convection-cooled
- Protection: Overload, overvoltage, short circuit, auto recovery
- Certifications: UL60950-1, CSA60950-1, EN55022 level B, EN61000-3-2, EN61000-3-3
- Weight: approx. 0.86 lbs (390 g)
