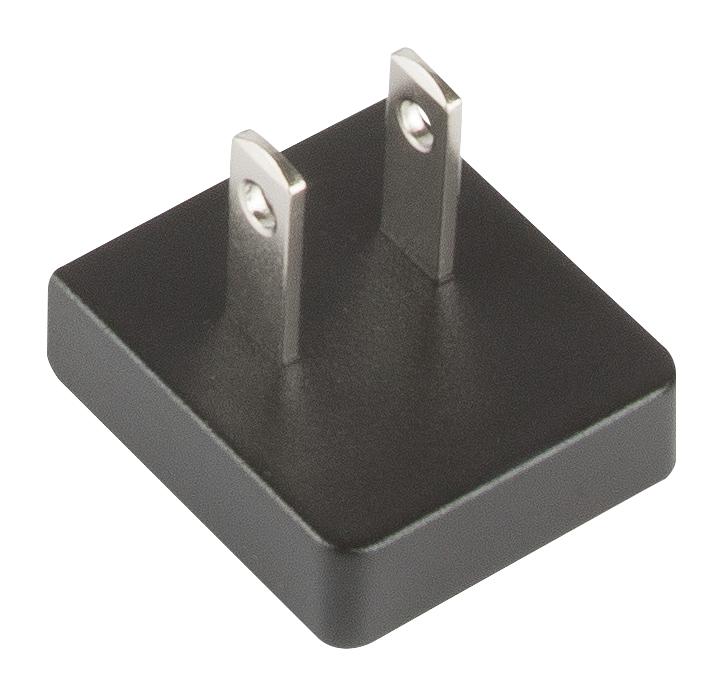

XP POWER ACMPLUGUS Power Supply Module
The ACM24 series of wall plug adaptors provide efficient, low-noise power suitable for industrial and medical applications. Compliance with energy efficiency level VI standards ensures minimal no-load power consumption and high active mode efficiency. Available in various output voltages from 9 V to 24 V, these adaptors feature interchangeable mains connectors, optional white versions, and a compact body size. They are built with Class II construction, offering reliable performance, medical and ITE approvals, and a 3-year warranty, making them ideal for cost-sensitive and demanding environments.
XP POWER ACMPLUGUS Power Supply Module Specifications:
- Output Power: 24 Watt
- Output Voltages: 9 V, 12 V, 15 V, 18 V, 24 V
- Output Current: 2330 mA, 2000 mA, 1600 mA, 1330 mA, 1000 mA
- Efficiency: Up to 88.4%
- Energy Efficiency Level: VI
- Input Voltage: 230 VAC
- Isolation: 4000 VAC input to output, 2 x MOPP
- Leakage Current: 30-700 uA at 264 VAC
- Switching Frequency: 24-70 kHz
- Operating Temperature: 0°C to +60°C, derates to 50% load at 60°C
- Dimensions: 88.0 x 30.0 x 57.0 mm
- Weight: 0.18 kg
- Certification: UL60950-1, EN60950-1, IEC60950-1, CSA C22.2 No. 60601
Buy the XP Power ACM724 U–2013 Reliable Power Supply for Industrial Applications
Purchase your XP Power ACM724 series power supply online today and ensure your industrial and medical devices operate reliably. With energy-efficient design, high safety standards, and a compact form factor, these adaptors are perfect for demanding environments. Featuring multiple output voltages, Class II construction, and a 3-year warranty, buying online offers fast delivery, competitive pricing, and trusted quality. Protect your projects with a proven power solution tailored for industrial and healthcare applications. Order now for dependable power you can rely on.
Order your XP Power ACM724 series AC-DC power supply today and benefit from high efficiency, compact design, and proven medical and industrial reliability.
Frequently Asked Questions
Where can I buy XP POWER ACMPLUGUS?
You can click on the BUY or RFQ button to purchase ACMPLUGUS from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACMPLUGUS?
You can download the ACMPLUGUS datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACMPLUGUS?
XP POWER
