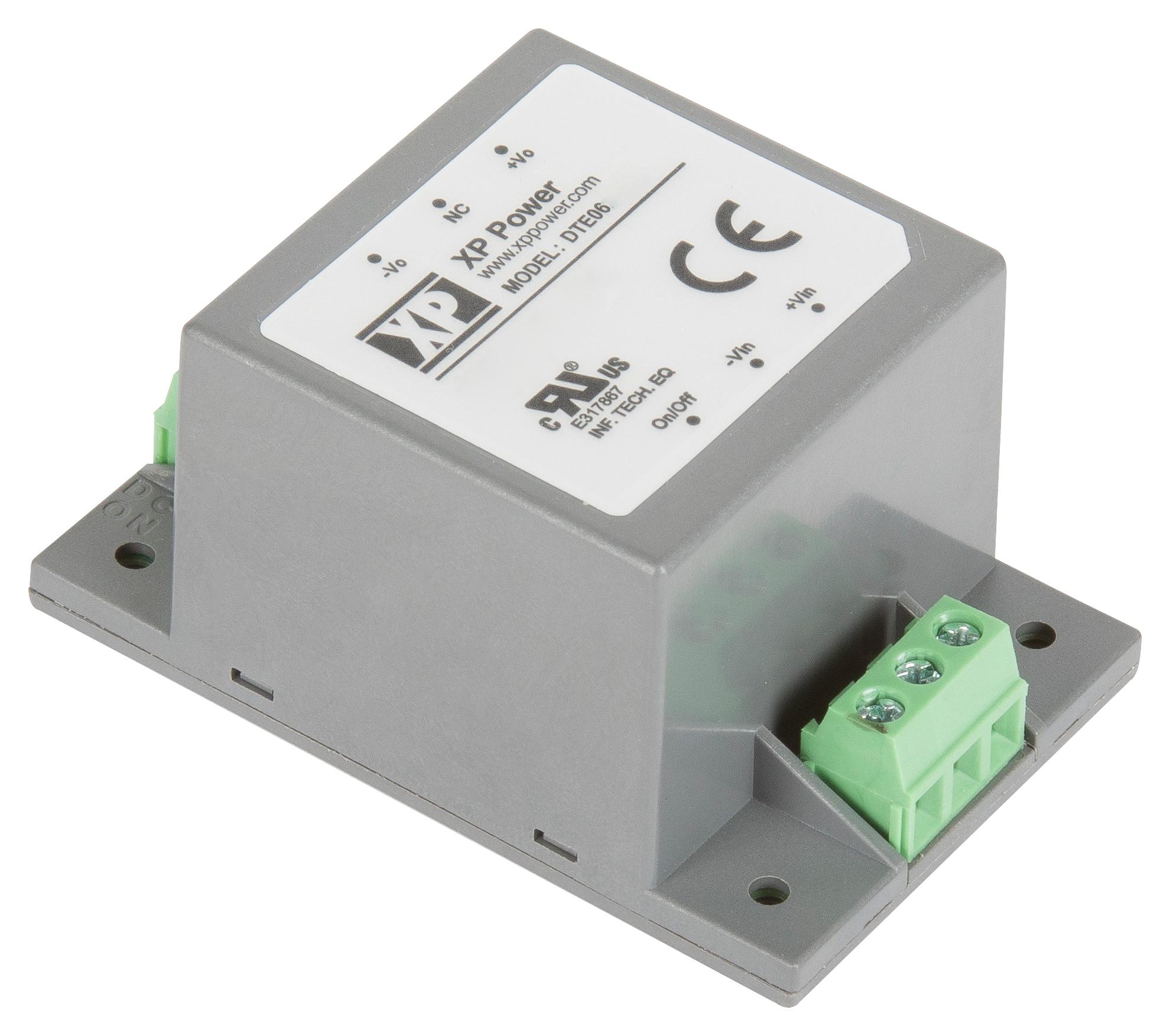

XP POWER DTE0624S5V1 DC-DC Converter
The DTE06 series are encapsulated 6W DC to DC converters featuring screw terminals for easy connection and an LED indicator for power status. They include a remote On/Off control, with a standby current of just 2.5mA when disabled. The converters provide 3kVDC input/output isolation, ensuring excellent separation between supply and load. Fully protected against input undervoltage, short circuit, and overload conditions, these rugged modules operate over a wide temperature range from -40°C to +105°C, delivering full power up to 80°C. They are certified with IEC/UL/cUL62368-1 safety approvals, meet EN55032 Class A EMI standards without external components, have a mean time between failure (MTBF) exceeding 4 million hours, and measure 2.09 x 1.34 x 1.04 inches (53.0 x 34.0 x 26.5 mm).
XP POWER DTE0624S5V1 DC-DC Converter Specifications:
- Power: 6 Watts
- Input Voltage Range: 5VDC to 48VDC, wide 4:1 input ratio
- Output Voltages: 5V, 12V, 15V, 24V, 48V with respective currents up to 1.20A
- Isolation Voltage: 3kVDC input/output
- Operating Temperature: -40°C to +105°C
- Full Power Operation: to 80°C
- Dimensions: 2.09 x 1.34 x 1.04 inches (53.0 x 34.0 x 26.5 mm)
- Protection: Input undervoltage, short circuit, overload
- Efficiency: up to 85%
- EMI Compliance: EN55032 class A without external components
- Safety Approvals: IEC/UL/cUL62368-1
- MTBF: >4 million hours
- Remote On/Off: Yes, standby current 2.5mA when off
Buy the Buy XP Power DTEO6 Toya DC-DC Converter Part Number DTE0624S5V1 Online
Purchase the XP Power DTE0624S5V1 DC-DC converter online for exceptional performance and reliability. This 6W module offers wide input voltage ranges, high efficiency, and comprehensive protections such as short circuit, overload, and undervoltage. Its rugged design supports operation from -40°C to +105°C, making it suitable for demanding industrial environments. The module features screw terminals, remote On/Off control, and 3kVDC isolation, ensuring optimal separation between power source and load. Get yours now for dependable power solutions.
Get XP Power DTE0624S5V1 today—built for precision, rugged protection, and reliable power conversion in industrial and commercial applications.
Frequently Asked Questions
Where can I buy XP POWER DTE0624S5V1?
You can click on the BUY or RFQ button to purchase DTE0624S5V1 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE0624S5V1?
You can download the DTE0624S5V1 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE0624S5V1?
XP POWER
